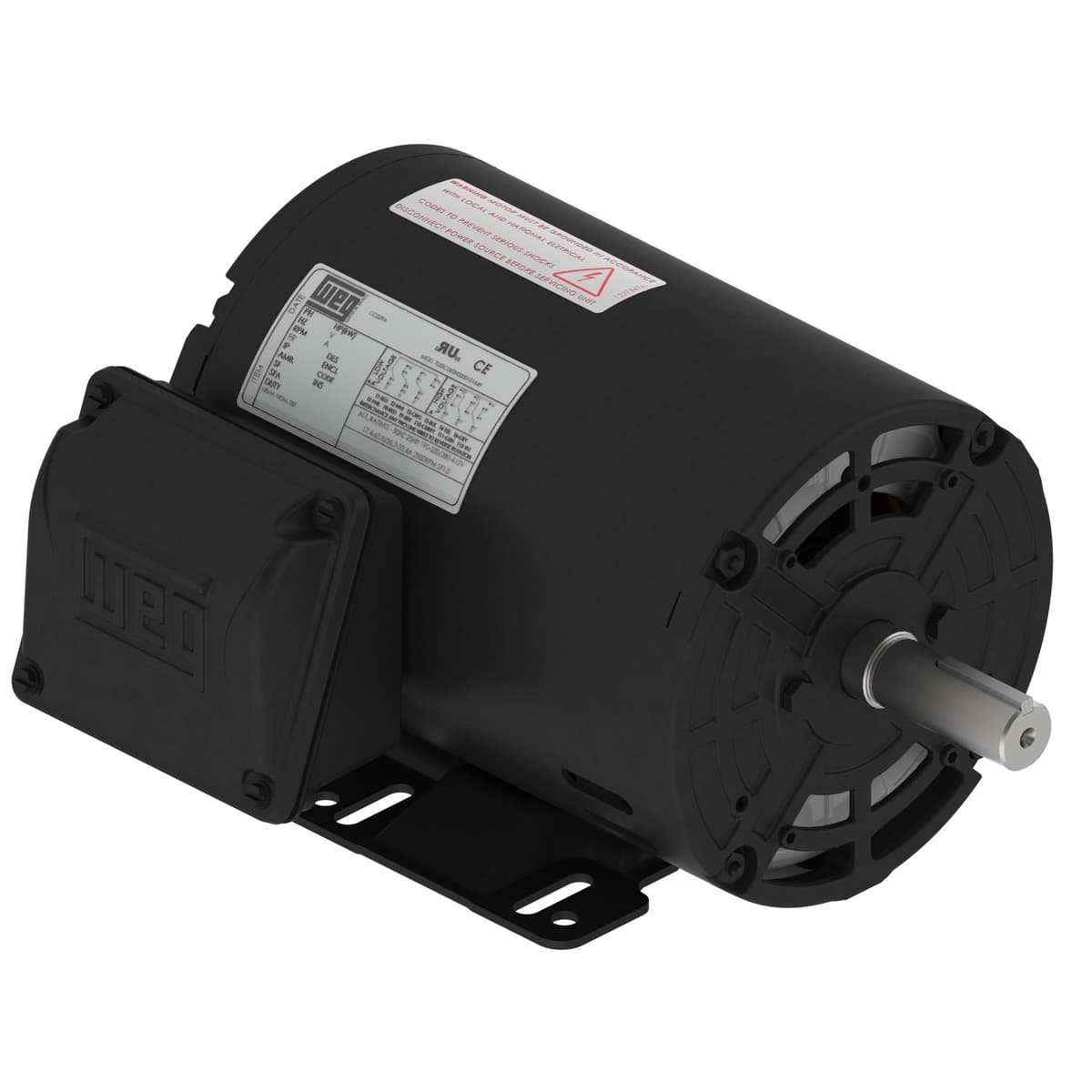

00336OT3V145T-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  200/400 V
• Output Rating
  3 HP
• Rated Speed
  3480 rpm
• Flange Type
  Without
• Rated voltage
  200/400 V
• Duty Cycle
  Cont.(S1)
• Mounting
  F-1
• Synchronous speed
  3600 rpm
• LRC
  8.0x(Code J)
• Moment of inertia (J)
  0.1279 sq.ft.lb
• Rotation¹
  Both (CW and CCW)
• Number of Poles
  2
• Breakdown torque
  300 %
• Starting Method
  Direct On Line
• Voltage
  200/400 V
• Rated speed
  3480 rpm
• Service factor
  1.15
• Enclosure
  IC01 - ODP
• L. R. Amperes
  66.1/33.0 A
Temperature rise
80 K
Standard
NEMA MG-1
Flange
Without
Frame
143/5T
Rated torque
4.53 ft.lb
Altitude
1000 m.a.s.l.
Number of poles
2
Slip
3.33 %
Locked rotor time
16s (cold) 9s (hot)
No load current
2.99/1.49 A
Insulation Class
F
Noise level²
62.0 dB(A)
Frequency
60 Hz
Rated current
8.26/4.13 A
Design
B
Approx. weight³
40.8 lb
Terminal box¹
Left position
Output
3 HP (2.2 kW)
Locked rotor torque
229 %
Ambient temperature
-20°C to +40°C
Output rating
3 HP
