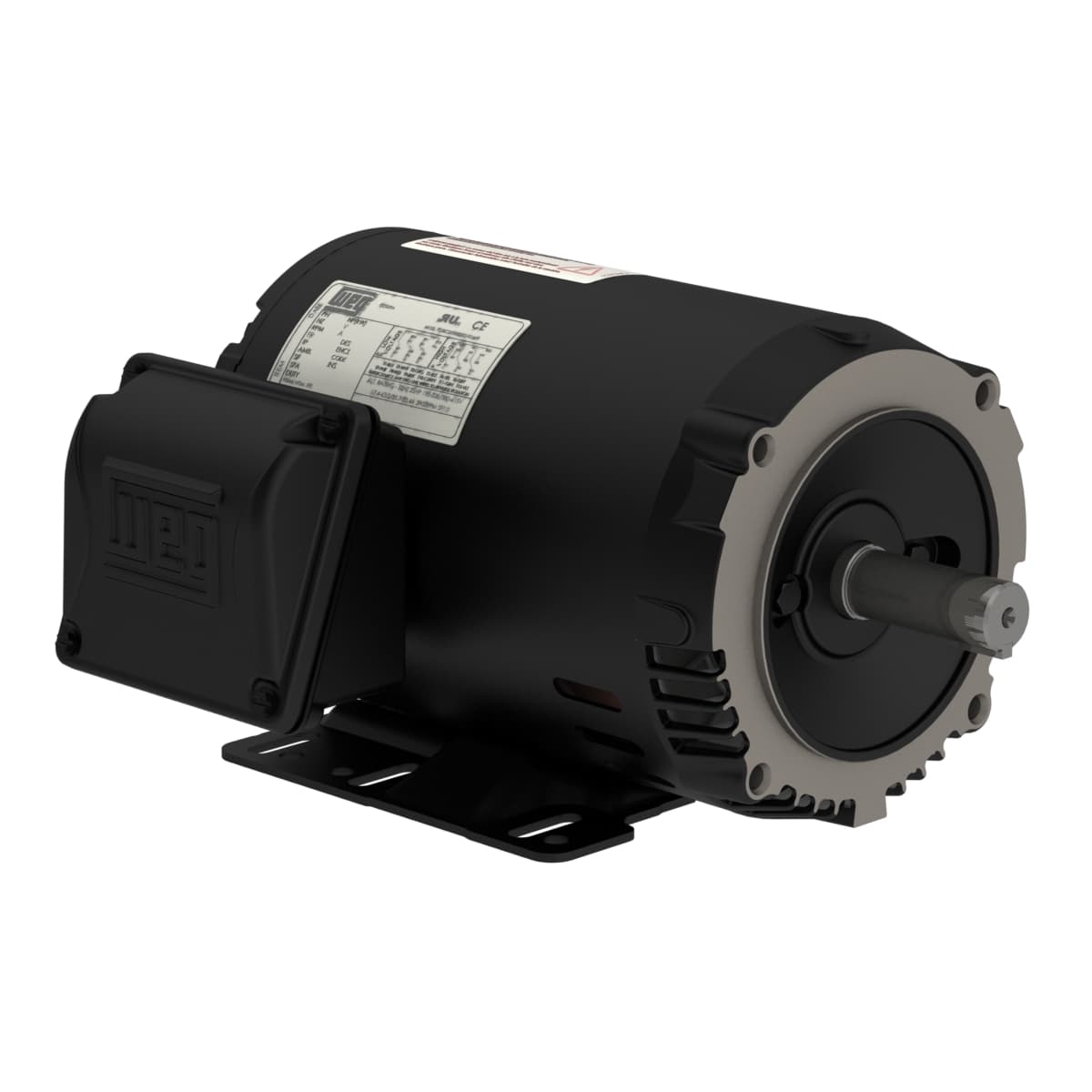

00336OT3H145TC-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  3 HP
• Rated Speed
  3480 rpm
• Flange Type
  C
• Mounting
  F-1
• Frequency
  60 Hz
• Design
  B
• Starting Method
  Direct On Line
• Number of poles
  2
• Synchronous speed
  3600 rpm
• Rated speed
  3480 rpm
• Locked rotor time
  16s (cold) 9s (hot)
• Rotation¹
  Both (CW and CCW)
• Output rating
  3 HP
• Flange
  C
• Rated voltage
  575 V
• Rated torque
  4.53 ft.lb
• Ambient temperature
  -20°C to +40°C
• Noise level²
  62.0 dB(A)
LRC
8.0x(Code J)
Voltage
575 V
L. R. Amperes
23.0 A
Number of Poles
2
Frame
143/5TC
Breakdown torque
300 %
Insulation Class
F
Service factor
1.15
Enclosure
IC01 - ODP
Slip
3.33 %
Locked rotor torque
229 %
Altitude
1000 m.a.s.l.
Terminal box¹
Left position
Approx. weight³
40.6 lb
Rated current
2.87 A
Moment of inertia (J)
0.1279 sq.ft.lb
No load current
1.04 A
Temperature rise
80 K
Duty Cycle
Cont.(S1)
Standard
NEMA MG-1
Output
3 HP (2.2 kW)
