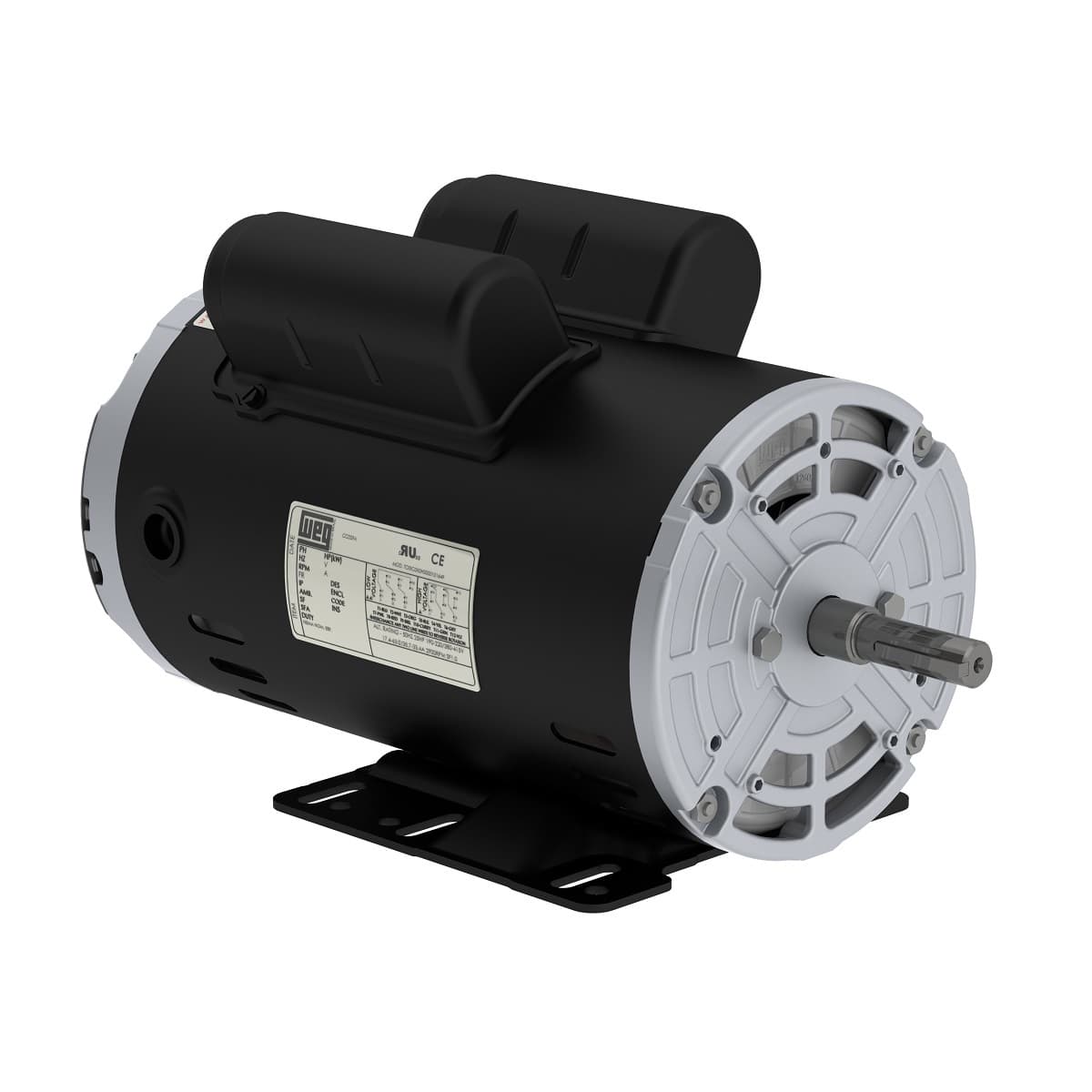

00336OT1B56-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  115/208-230 V
• Output Rating
  3 HP
• Rated Speed
  3500 rpm
• Flange Type
  Without
• Slip
  2.78 %
• Design
  L
• Enclosure
  IC01 - ODP
• Number of poles
  2
• Rated current
  24.4/13.5-12.2 A
• Temperature rise
  80 K
• Starting Method
  Direct On Line
• Rated voltage
  115/208-230 V
• LRC
  8.2x(Code J)
• Service factor
  1.15 (1.00 @ 208V)
• Voltage
  115/208-230 V
• Rated torque
  4.50 ft.lb
• Duty Cycle
  Cont.(S1)
• Terminal box¹
  Without Terminal Box
• L. R. Amperes
  200/111-100 A
Locked rotor time
10s (cold) 6s (hot)
Rotation¹
Both (CW and CCW)
Flange
Without
Rated speed
3500 rpm
Moment of inertia (J)
0.0944 sq.ft.lb
Mounting
F-1
Output rating
3 HP
Number of Poles
2
Locked rotor torque
220 %
Noise level²
58.0 dB(A)
Output
3 HP (2.2 kW)
No load current
7.80/3.36-3.90 A
Altitude
1000 m.a.s.l.
Synchronous speed
3600 rpm
Frame
56H
Insulation Class
F
Ambient temperature
-20°C to +40°C
Standard
NEMA MG-1
Frequency
60 Hz
Breakdown torque
280 %
Approx. weight³
46.8 lb
