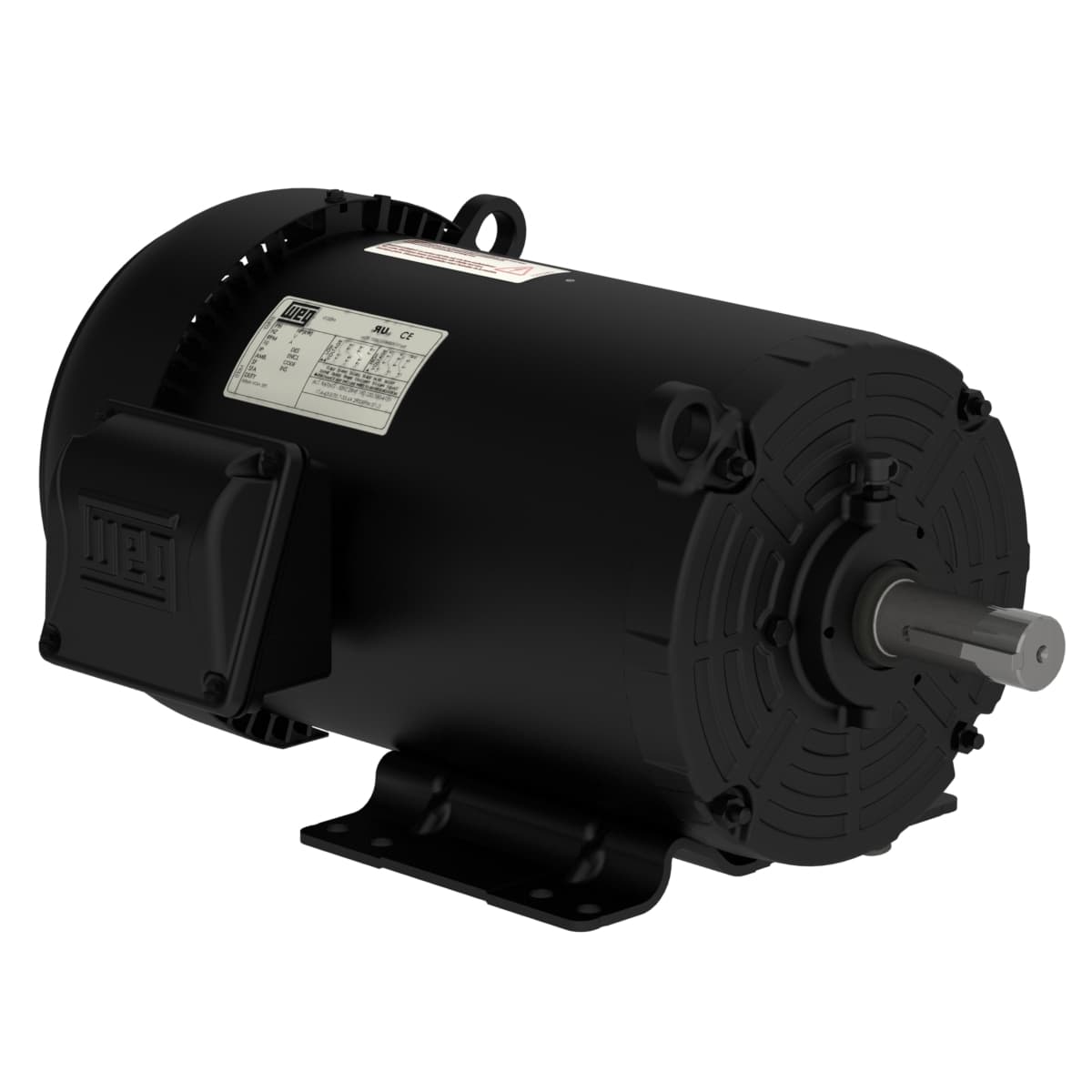

00336ET3E182T-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  3 HP
• Rated Speed
  3515 rpm
• Flange Type
  Without
• Frequency
  60 Hz
• No load current
  3.40/1.70 A
• Duty Cycle
  Cont.(S1)
• Number of poles
  2
• Number of Poles
  2
• Breakdown torque
  350 %
• Approx. weight³
  62.2 lb
• Synchronous speed
  3600 rpm
• LRC
  8.8x(Code K)
• Service factor
  1.15
• Noise level²
  68.0 dB(A)
• Rated voltage
  230/460 V
• Insulation Class
  F
• Enclosure
  IC411 - TEFC
• Flange
  Without
L. R. Amperes
66.2/33.1 A
Rated torque
4.48 ft.lb
Degree of Protection
IP55
Voltage
230/460//190-220/380-415 V
Output
3 HP (2.2 kW)
Temperature rise
80 K
Ambient temperature
-20°C to +40°C
Terminal box¹
Left position
Slip
2.36 %
Moment of inertia (J)
0.1564 sq.ft.lb
Mounting
F-1
Frame
182/4T
Locked rotor torque
240 %
Starting Method
Direct On Line
Output rating
3 HP
Rated speed
3515 rpm
Design
B
Rotation¹
Both (CW and CCW)
Rated current
7.52/3.76 A
Locked rotor time
45s (cold) 25s (hot)
Altitude
1000 m.a.s.l.
Standard
NEMA MG-1
