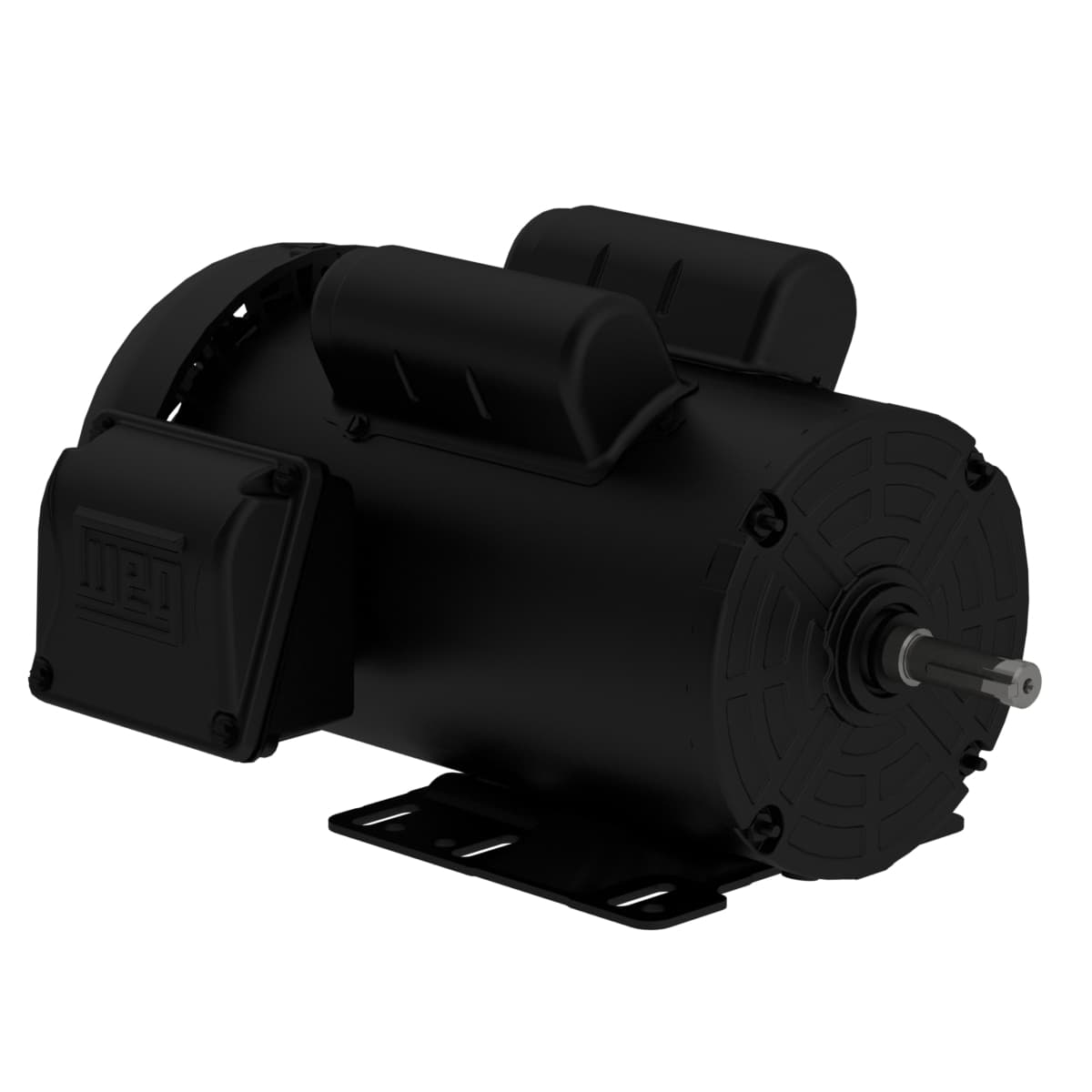

00336ES1B145T-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  115/208-230 V
• Output Rating
  3 HP
• Rated Speed
  3490 rpm
• Flange Type
  Without
• Frame
  143/5T
• Breakdown torque
  250 %
• Mounting
  F-1
• Terminal box¹
  Left position
• Output
  3 HP (2.2 kW)
• Rotation¹
  Both (CW and CCW)
• Frequency
  60 Hz
• Moment of inertia (J)
  0.0944 sq.ft.lb
• Enclosure
  IC411 - TEFC
• Approx. weight³
  50.1 lb
• Number of Poles
  2
• Design
  L
• Insulation Class
  F
• Number of poles
  2
• L. R. Amperes
  203/112-102 A
Locked rotor time
10s (cold) 6s (hot)
Degree of Protection
IP55
Output rating
3 HP
Rated current
25.4/14.0-12.7 A
Locked rotor torque
210 %
Altitude
1000 m.a.s.l.
Synchronous speed
3600 rpm
Slip
3.06 %
Temperature rise
80 K
Service factor
1.15 (1.00 @ 208V)
Standard
NEMA MG-1
Rated voltage
115/208-230 V
Rated torque
4.51 ft.lb
Starting Method
Direct On Line
Flange
Without
No load current
8.00/3.45-4.00 A
Duty Cycle
Cont.(S1)
Voltage
115/208-230 V
Rated speed
3490 rpm
LRC
8.0x(Code J)
Ambient temperature
-20°C to +40°C
Noise level²
68.0 dB(A)
