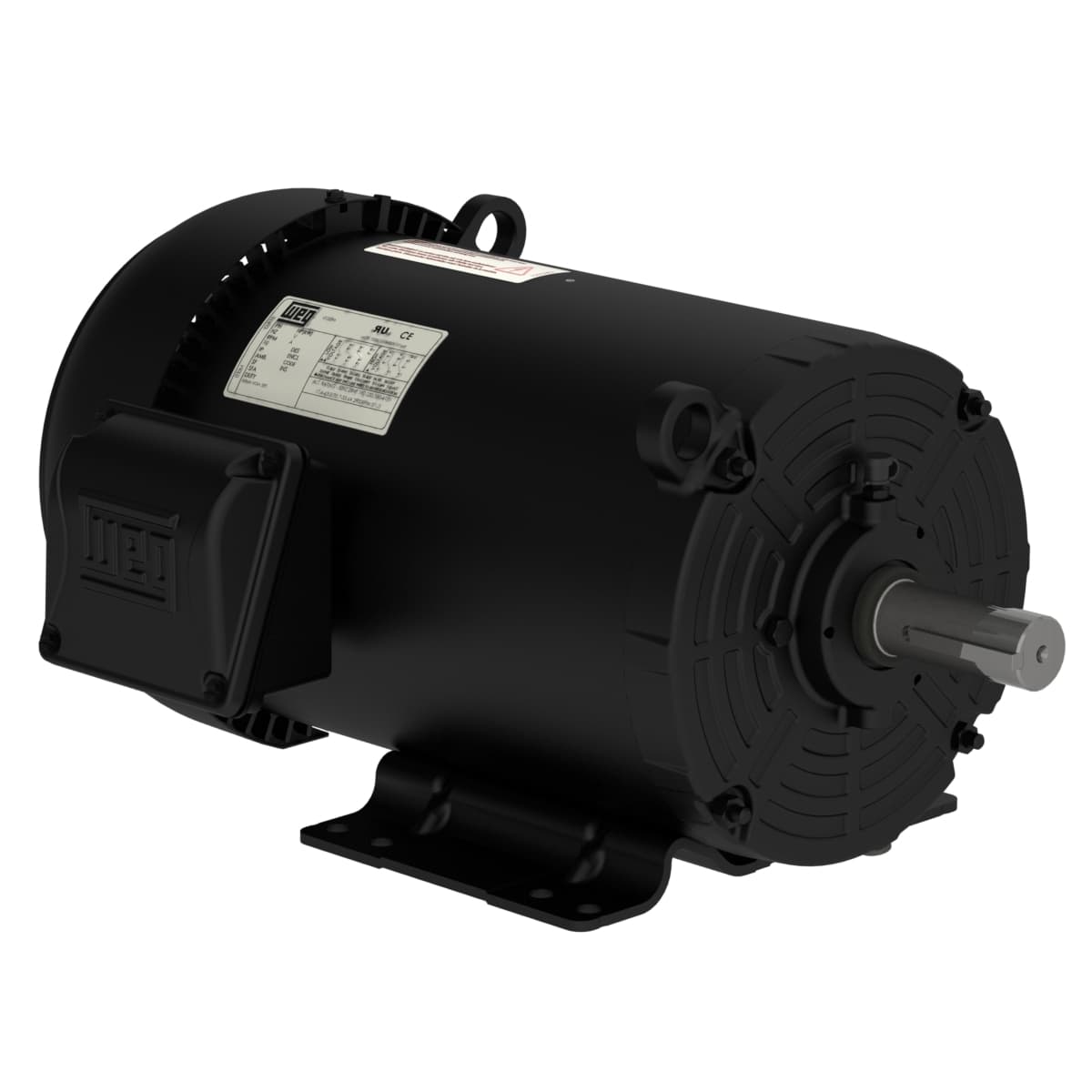

00336ET3E182T-SG WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 3 HP
- Rated Speed 3515 rpm
- Flange Type Without
- Rated voltage 230/460 V
- Locked rotor time 45s (cold) 25s (hot)
- Flange Without
- Altitude 1000 m.a.s.l.
- Frame 182/4T
- Rated torque 4.48 ft.lb
- Degree of Protection IP55
- L. R. Amperes 66.2/33.1 A
- No load current 3.40/1.70 A
- Duty Cycle Cont.(S1)
- Rated speed 3515 rpm
- Temperature rise 80 K
- Output 3 HP (2.2 kW)
- Insulation Class F
- Noise level² 68.0 dB(A)
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Starting Method Direct On Line
- Number of poles 2
- Service factor 1.15
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Approx. weight³ 62.7 lb
- Locked rotor torque 240 %
- Slip 2.36 %
- Moment of inertia (J) 0.1564 sq.ft.lb
- Output rating 3 HP
- Rated current 7.52/3.76 A
- Design B
- Synchronous speed 3600 rpm
- Breakdown torque 350 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Mounting F-1
- LRC 8.8x(Code K)
- Terminal box¹ Left position
- Voltage 230/460//190-220/380-415 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
