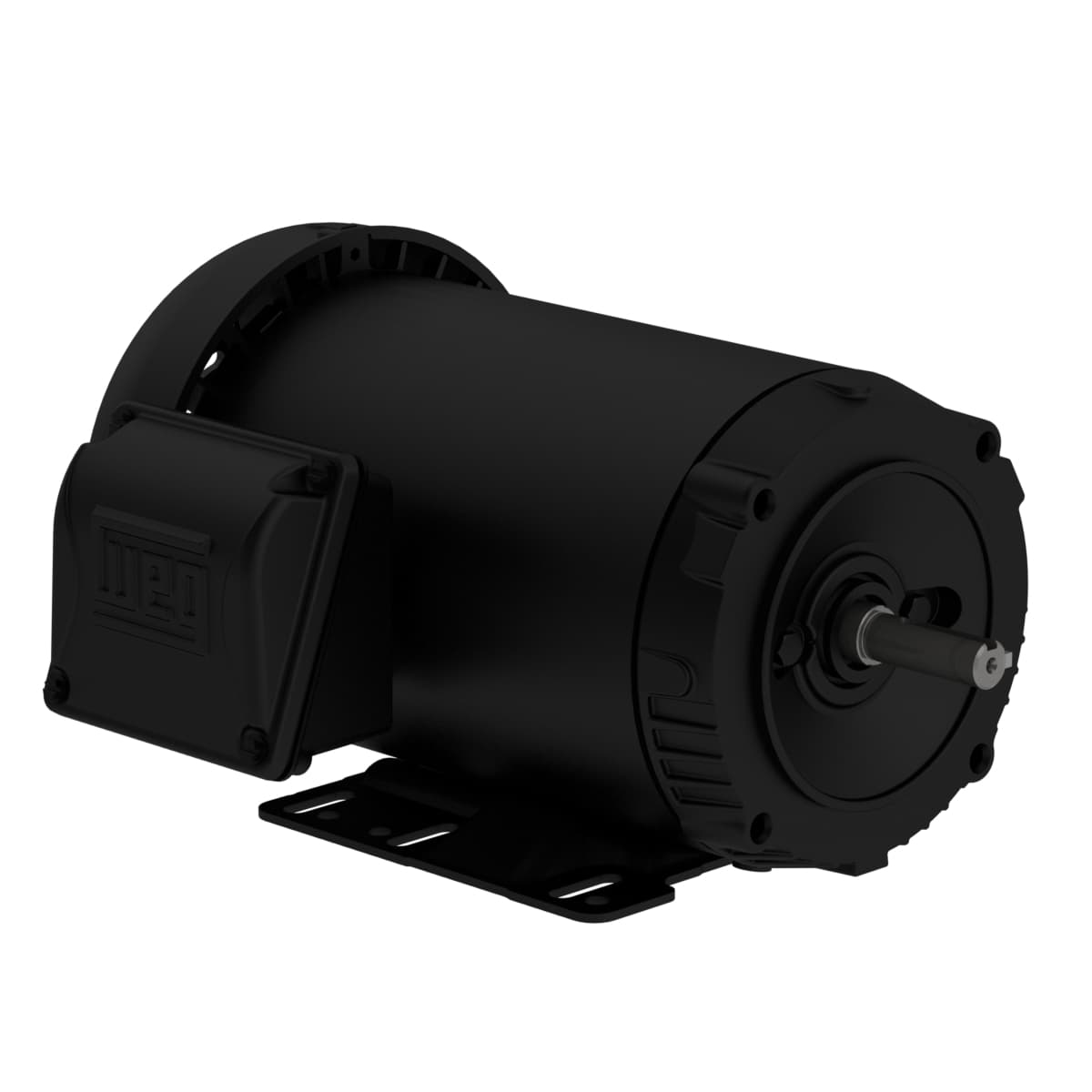

00336ET3E56C-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  3 HP
• Rated Speed
  3505 rpm
• Flange Type
  C
• Design
  B
• Number of poles
  2
• Rated current
  7.34/3.67 A
• Breakdown torque
  380 %
• Enclosure
  IC411 - TEFC
• Synchronous speed
  3600 rpm
• Frame
  56HC
• Locked rotor torque
  280 %
• Temperature rise
  80 K
• Standard
  NEMA MG-1
• Voltage
  230/460//190-220/380-415 V
• Frequency
  60 Hz
• Insulation Class
  F
• Altitude
  1000 m.a.s.l.
• Number of Poles
  2
L. R. Amperes
68.3/34.1 A
Ambient temperature
-20°C to +40°C
Rotation¹
Both (CW and CCW)
Rated speed
3505 rpm
No load current
3.20/1.60 A
Degree of Protection
IP55
Mounting
F-1
Terminal box¹
Left position
Output
3 HP (2.2 kW)
Rated torque
4.49 ft.lb
Service factor
1.15 (1.00 @ 208V)
Approx. weight³
47.2 lb
Slip
2.64 %
Locked rotor time
18s (cold) 10s (hot)
Output rating
3 HP
LRC
9.3x(Code L)
Duty Cycle
Cont.(S1)
Noise level²
68.0 dB(A)
Rated voltage
230/460 V
Moment of inertia (J)
0.1663 sq.ft.lb
Starting Method
Direct On Line
Flange
C
