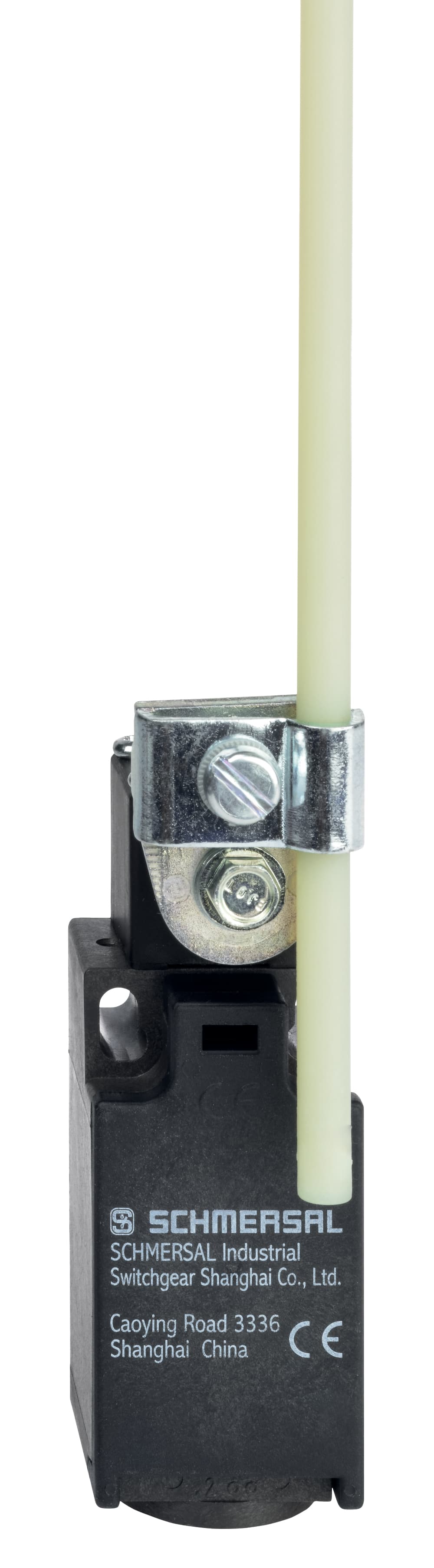

TV10H 236-11Z-M20 Schmersal Electronic Components

Product Details

• Lever material
  Metal film
• Number of auxiliary contacts
  1
• Actuating speed, minimum
  4,122 mm/min
• Length x Width x Height
  Height of sensor: 96.5 mm (without rod)
• Ambient temperature, maximum
  +80 °C
• Gross weight
  95 g
• Housing construction form
  Norm construction design
• Actuating torque, minimum
  0.2 Nm
• Width of sensor
  30 mm
• Utilisation category DC-13
  1 A
• Material of the rod
  Plastic
• Note (Actuating speed)
  Actuating speed with actuating angle 30° to switch axis
• Terminal Connector
  Screw connection
• Cable section, maximum
  2.5 mm²
• Switching element
  NO contact, NC contact
• Actuating element
  Rod lever
• Number of safety contacts
  1
• Note (Switchover time)
  Switchover time in accordance with actuating speed
• Length of sensor
  43.5 mm
• Thermal test current
  10 A
Mechanical life, minimum
20,000,000 Operations
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Note Bounce duration
Bounce duration in accordance with actuating speed
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Material of the contacts, electrical
Silver
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Ambient temperature, minimum
-30 °C
Required rated short-circuit current to EN 60947-5-1
1,000 A
Standards
IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
Actuating speed, maximum
1 m/s
Cable section, minimum
0.75 mm²
Rated insulation voltage Ui
250 V
Switching frequency
5,000 /h
Rated impulse withstand voltage Uimp
6 kV
Switching principle
Creep circuit element
Utilisation category AC-15
4 A
