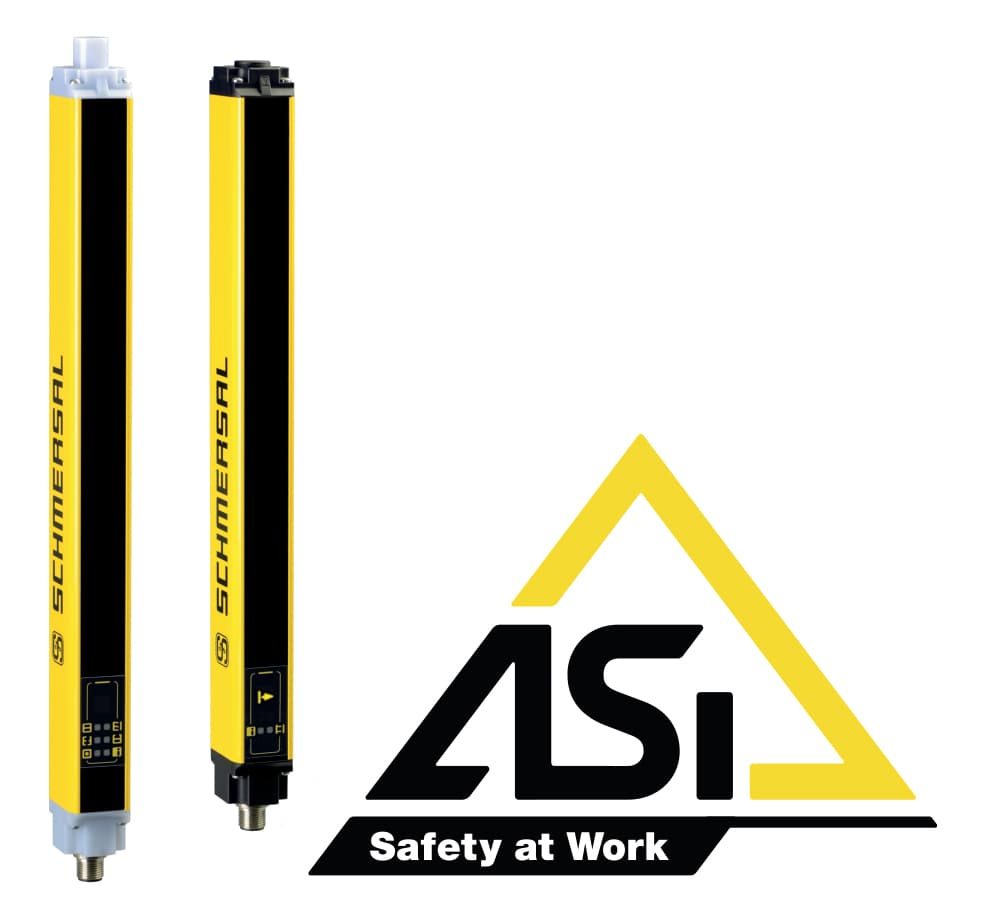

SLC440AS-ER-1290-14 Schmersal Safety Light Curtains

Product Details

• Active principle
  optoelectronic
• Detection ability for test bodies at v = 1.6 m/s
  14 mm
• Storage and transport temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  32 VDC
• AS-i Operating voltage AS-i maximum
  31.6 VDC
• AS-i Parameter bits, P1
  Low beam quality
• AS-i Input module address
  0
• Enclosure material
  Aluminium
• Height of transmitter
  1,403 mm
• Length of sensor
  33 mm
• Degree of protection
  IP67 to EN 60529
• AS-i Current consumption, maximum
  50 mA
• Standards
  EN 50295, EN 62061, EN 61496-1
• Range, protection field, maximum
  7,000 mm
• Width of sensor
  27.8 mm
• Restistance to shock
  10 g / 16 ms
• AS-i Profile
  S-0.B.F.E
• AS-i Parameter bits, P2
  No function
• Note (AS-i Parameter bits)
  Set the parameter outputs to "1111" (0xF), FID: periphery error
• Power consumption, Transmitter
  75 mA
Power consumption, Receiver
150 mA
Gross weight
2,230 g
Range, protection field, minimum
300 mm
Ambient temperature, minimum
-10 °C
Protection rating
III
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Parameter bits, P0
No function
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
Integral System Diagnostics, status
Yes
Terminal, Connector, Transmitter
Connector plug M12, 4-pole
Terminal Connector
Connector
Overvoltage category
III
AS-i Version
V 3.0
Hide function
Yes
Safety functions
Yes
Reaction time, maximum
23 ms
Terminal connector, Recipient
Connector plug M12, 5-pole
Wave length of the sensor
880 nm
Height of the protection field
1,290 mm
Ambient temperature, maximum
+50 °C
Storage and transport temperature, maximum
+70 °C
Rated impulse withstand voltage Uimp
0.8 kV
Degree of pollution to VDE 0100
2
AS-i Specification
Safety-Slave
7-segment display
Yes
Number of beams
128
Height of Receiver
1,423 mm
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 0.35 mm
AS-i Operating voltage, minimum
18 VDC
AS-i Outputs, DO 0 … DO 3
No Function
AS-i Parameter bits, P3
Internal device error (FID)
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
