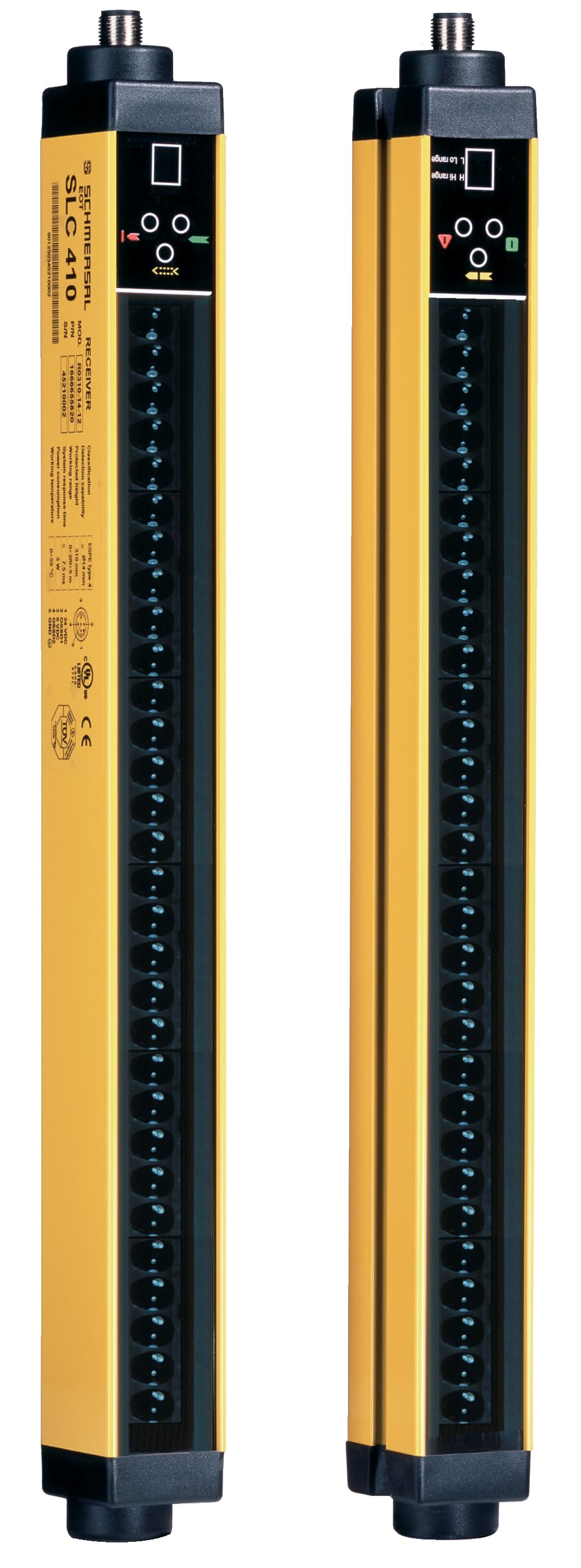

SLC 420-E/R0170-30-RFB Schmersal Safety Light Curtains

Product Details

• Versions
  p-type
• Output current, (fail-safe output), maximum
  0.5 A
• Electrical power consumption of the transmitter
  4 W
• Electrical power consumption of the receiver
  8 W
• Voltage type
  DC (direct current)
• Storage and transport temperature, minimum
  -25 °C
• Protection rating
  III
• Ambient temperature, maximum
  +50 °C
• Switching voltage OSSD, HIGH signal
  24 V
• Storage and transport temperature, maximum
  +70 °C
• Ambient temperature, minimum
  -10 °C
• Degree of protection
  IP67 to EN 60529
• Height of sensor
  255 mm
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
• Terminal connector, Recipient
  Connector plug M12, 8-pole
• Diameter of sensor
  49 mm
• Length of the connectable cable, maximum
  100 m
• Range, protection field, minimum
  300 mm
• Terminal Connector
  Connector
• Range, protection field, maximum
  10,000 mm
Wave length of the sensor
880 nm
Height of the protection field
170 mm
Detection ability for test bodies at v = 1.6 m/s
30 mm
Number of beams
8
Integral System Diagnostics, status
Yes
Number of fail-safe digital outputs
2
Beam coding available
Yes
Reaction time, maximum
10 ms
Standards
IEC/EN 61496-1/-2
Restart interlock (manual reset)
Yes
Hide function
Yes
Integral System Diagnostics
Yes
Gross weight
1,470 g
Enclosure material
Aluminium
