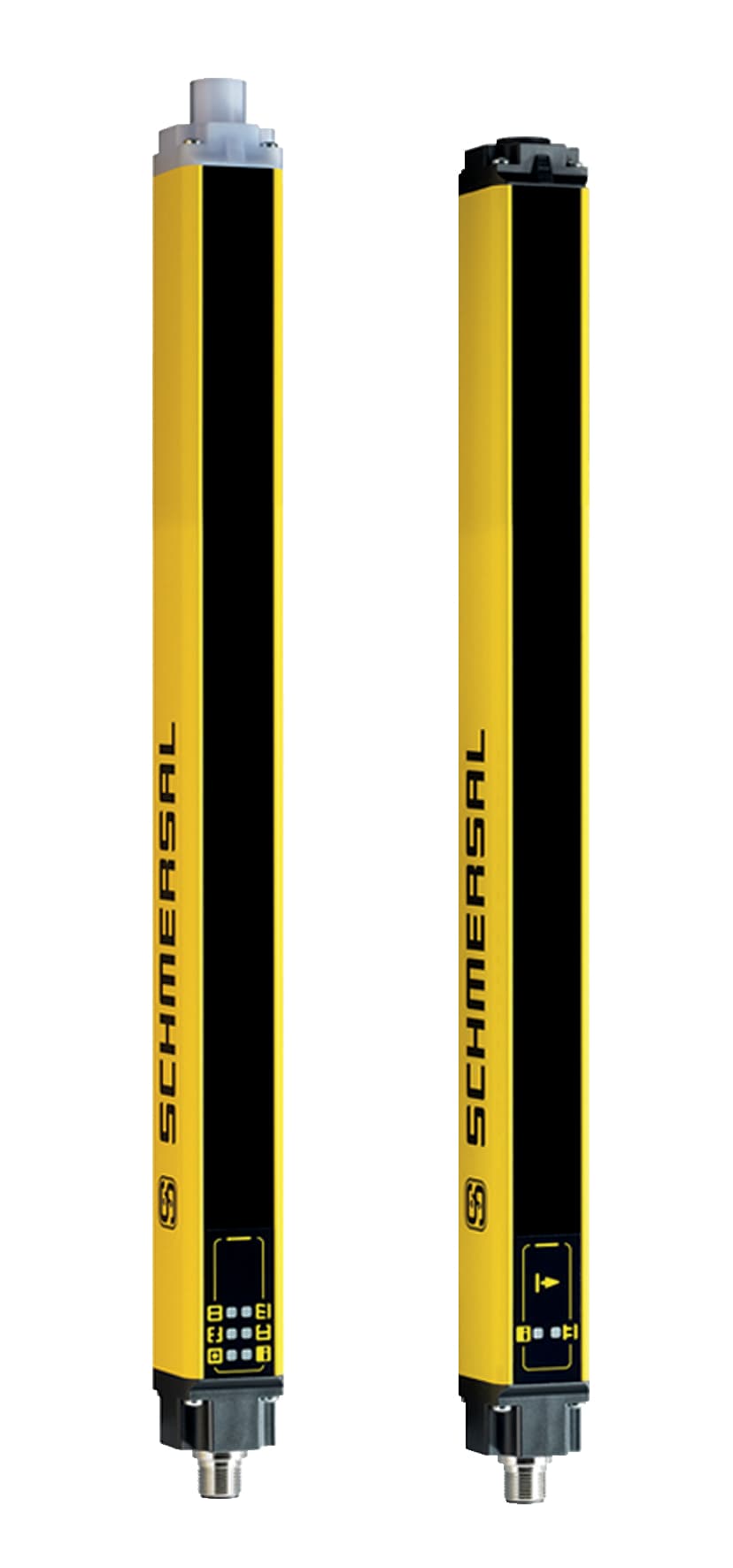

SLC440-ER-1770-14-H1 Schmersal Safety Light Curtains
Part#:SLC440-ER-1770-14-H1
Alt. Part#:103039597
Manufacturer:Schmersal
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLC440-ER-1770-14-H1 Schmersal - Safety light curtains, Safety light grids; Safety light curtains; Safety type 4 in accordance with IEC 61496-1; Status and diagnostics via App with bluetooth; active integrated set-up tool; Blanking: fixed/floating; Double acknowledgement/reset; Integrate
Product Details
- Hide function Yes
- Range, protection field, maximum 10,000 mm
- Length of sensor 33 mm
- Protection rating III
- Contactor control integrated Yes
- Number of fail-safe digital outputs 2
- Height of Receiver 1,861 mm
- Storage and transport temperature, minimum -25 °C
- Versions p-type
- Beam coding available Yes
- Height of the protection field 1,770 mm
- Terminal Connector Connector
- Degree of protection IP67 to EN 60529
- Switching voltage OSSD, HIGH signal 24 V
- 7-segment display Yes
- Number of beams 176
- Terminal, Connector, Transmitter Connector plug M12, 4-pole
- Ambient temperature, maximum +50 °C
- Electrical power consumption of the receiver, maximum 10 W
- Restart interlock (manual reset) Yes
- Integral System Diagnostics Yes
- Terminal connector, Recipient Connector plug M12, 8-pole
- Ambient temperature, minimum -25 °C
- Output current, (fail-safe output), maximum 0.25 A
- Reaction time, maximum 28 ms
- Detection ability for test bodies at v = 1.6 m/s 14 mm
- Length of the connectable cable, maximum 100 m
- Storage and transport temperature, maximum +70 °C
- Enclosure material Aluminium
- Integral System Diagnostics, status Yes
- Range, protection field, minimum 3,000 mm
- Height of transmitter 1,851 mm
- Voltage type DC (direct current)
- Standards EN 61496-1, EN 61496-2
- Bluetooth Yes
- Wave length of the sensor 850 nm
- Width of sensor 27.8 mm
- Electrical power consumption of the transmitter, maximum 5 W
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
