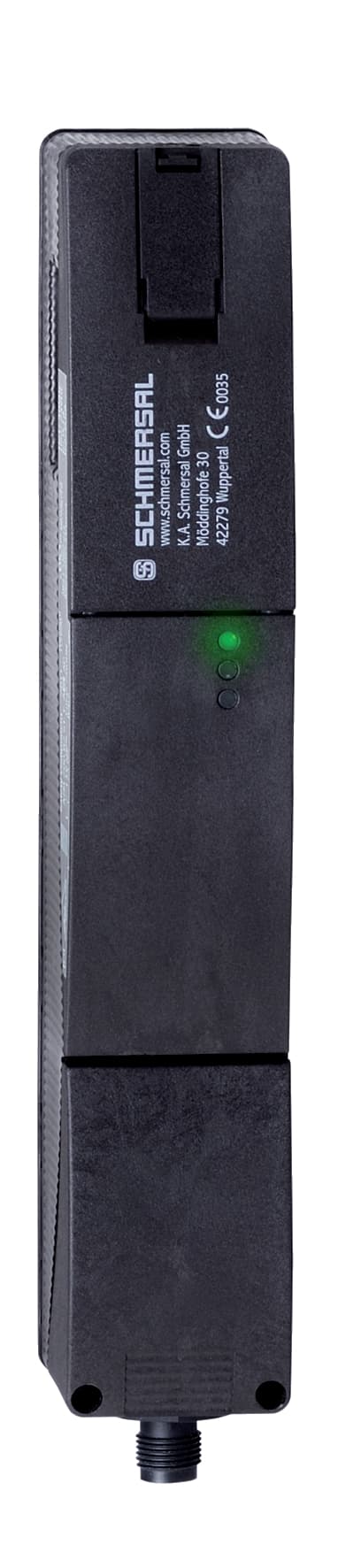

AZM201Z-I2-ST2-T-1P2PW Schmersal Safety Switches

Product Details

• Gross weight
  588 g
• Manual release
  Yes
• Clamping force, maximum Fmax
  2,600 N
• Storage and transport temperature, minimum
  -25 °C
• Protection rating
  III
• Current consumption with solenoid ON, peak
  700 mA / 100 ms
• Rated operating current (safety outputs)
  250 mA
• Coding level according to ISO 14119
  High
• Response time safety outputs in case of switch-off by safety inputs, maximum
  0.5 ms
• Safety functions
  Yes
• Clamping force in accordance with ISO14119 Fzh
  2,000 N
• Ambient temperature, minimum
  -25 °C
• Overvoltage category
  III
• Switching frequency, approx.
  1 Hz
• Voltage drop Ud, maximum
  4 V
• Active principle
  RFID
• Guard locking monitored
  Yes
• Terminal Connector
  Connector M12, 8-pole
• Relative humidity, minimum
  30 %
• Degree of pollution to VDE 0100
  3
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Current leakage Ir
0.5 mA
Enclosure material
Glass-fibre, reinforced thermoplastic
Short-circuit recognition
Yes
Actuating speed, maximum
0.2 m/s
Storage and transport temperature, maximum
+85 °C
Rated impulse withstand voltage Uimp
0.8 kV
Classification ZVEI CB24I, Sink
C1, C2
Time to readiness, maximum
4,000 ms
Power to unlock
Yes
Number of safety contacts
2
Height of sensor
220 mm
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
No-load supply current I0
50 mA
Short circuit detection
Yes
Mechanical life, minimum
1,000,000 Operations
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Restistance to shock
30 g / 11 ms
Current consumption with solenoid ON, average
200 mA
Duration of risk, maximum
200 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Series-wiring
Yes
Length of sensor
50 mm
Relative humidity, maximum
95 %
Operating voltage, minimum
20.4 VDC
Classification ZVEI CB24I, Source
C2
general information
Individual coding, multiple teaching
Latching force
30 N
Ambient temperature, maximum
+60 °C
Rated insulation voltage Ui
32 VDC
Operating current
50 mA
Voltage, Utilisation category DC13
24 VDC
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Integral System Diagnostics, status
Yes
Width of sensor
40 mm
Note (Relative humidity)
non-condensing
Operating voltage, maximum
26.4 VDC
Current, Utilisation category DC13
0.05 A
