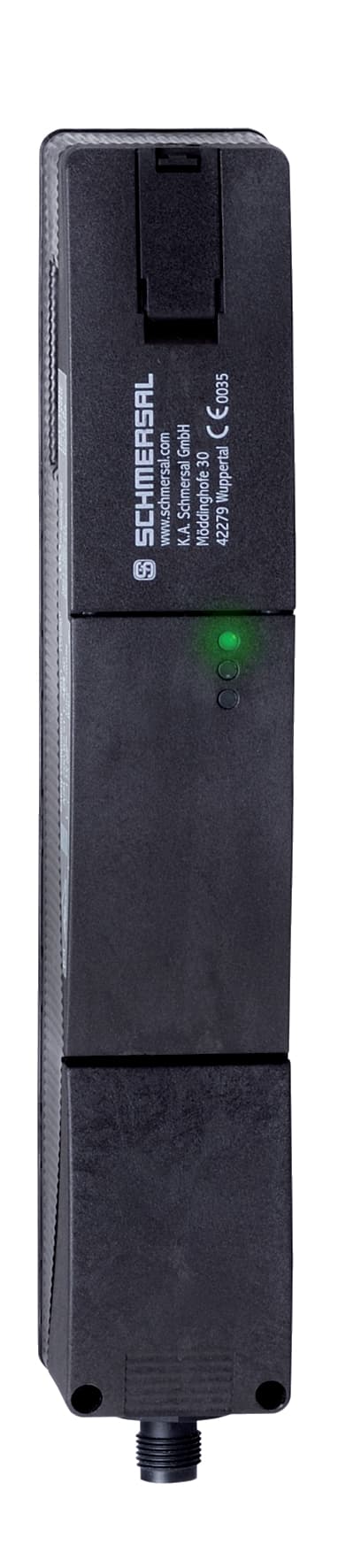

AZM201D-I2-ST2-T-1P2P2P-A Schmersal Safety Switch Interlocks

Product Details

• Response time safety outputs in case of switch-off by actuator, maximum
  100 ms
• Short circuit detection
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Height of sensor
  220 mm
• Relative humidity, minimum
  30 %
• Operating voltage, maximum
  26.4 VDC
• Standards
  EN ISO 13849-1, EN ISO 14119, IEC 60947-5-3
• Response time safety outputs in case of switch-off by safety inputs, maximum
  0.5 ms
• Terminal Connector
  Connector M12, 8-pole
• Storage and transport temperature, minimum
  -25 °C
• Operating voltage, minimum
  20.4 VDC
• Current, Utilisation category DC13
  0.05 A
• Active principle
  RFID
• Manual release
  Yes
• Clamping force, maximum Fmax
  2,600 N
• Relative humidity, maximum
  95 %
• Overvoltage category
  III
• Gross weight
  495 g
• general information
  Individual coding, multiple teaching
• Duration of risk, maximum
  200 ms
Guard locking monitored
Yes
Actuator monitored
Yes
Number of safety contacts
4
Width of sensor
40 mm
Degree of pollution to VDE 0100
3
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Classification ZVEI CB24I, Sink
C1, C2
Coding level according to ISO 14119
High
Safety functions
Yes
Length of sensor
50 mm
Note (Relative humidity)
non-condensing
Current consumption with solenoid ON, peak
700 mA / 100 ms
Integral System Diagnostics, status
Yes
Storage and transport temperature, maximum
+85 °C
Protection rating
III
Switching frequency, approx.
1 Hz
Current leakage Ir
0.5 mA
Clamping force in accordance with ISO14119 Fzh
2,000 N
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Rated impulse withstand voltage Uimp
0.8 kV
Operating current
100 mA
Voltage drop Ud, maximum
4 V
Time to readiness, maximum
4,000 ms
Enclosure material
Glass-fibre, reinforced thermoplastic
Actuating speed, maximum
0.2 m/s
Ambient temperature, minimum
-25 °C
Restistance to shock
30 g / 11 ms
No-load supply current I0
50 mA
Rated insulation voltage Ui
32 VDC
Note, Utilisation category DC13
Gilt für die Ausgänge Y1 und Y2
Power to lock
Yes
Ambient temperature, maximum
+60 °C
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Rated operating current (safety outputs)
250 mA
Short-circuit recognition
Yes
Latching force
30 N
Voltage, Utilisation category DC13
24 VDC
Classification ZVEI CB24I, Source
C2
