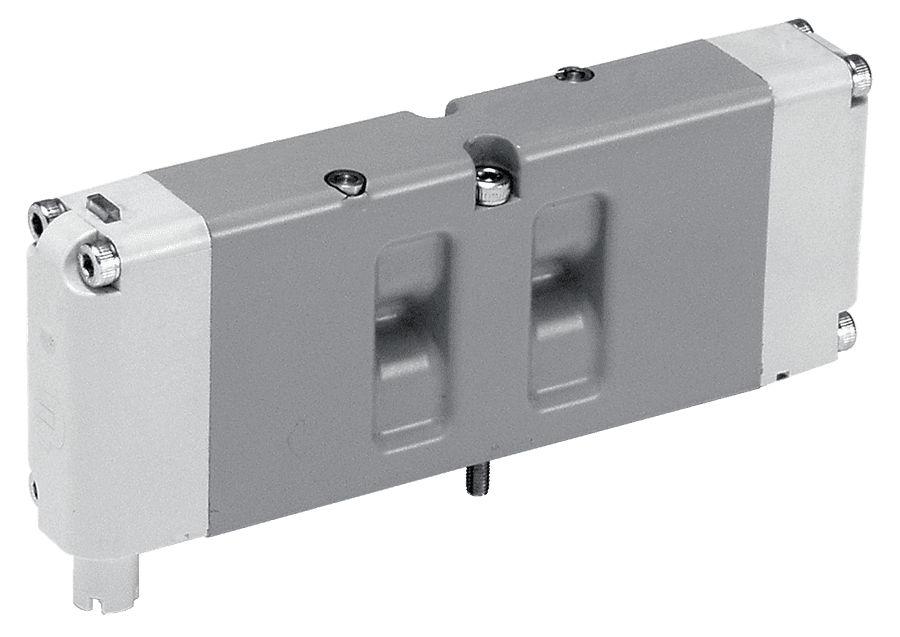

W6677A7427Z ROSS Controls Electronic Components

Product Details

• Actuation
  Electrical
• Fluid Media
  Filtered air
• Construction
  Spool and Sleeve
• Manual Override
  Locking
• Height
  1.66 in (42 mm)
• Series
  W66
• Size
  01 (26 mm)
• Length (mm)
  26
• Valve Type
  Directional Control
• Media Temperature (Celsius)
  -15 to 50
• Avg Cv
  1.1
• Center Position
  Open
• Media Temperature
  5 to 120 F (-15 to 50 C)
• Pilot Type
  External
• Function
  5/3 Double Solenoid
• Application
  General
• Default Position
  Normally Open
• Height (mm)
  42
• Valve Standard
  ISO 15407-2
• Operating Pressure (bar)
  Vacuum to 9.9
Length
1.02 in (26 mm)
Mounting
Base Mounted
Operating Pressure
Vacuum to 145 psig (9.9 bar)
Voltage
120 VAC
Weight
0.6 lb (0.25 kg)
Ambient Temperature (Celsius)
-15 to 50
Return
Detented
Width
5.10 in (130 mm)
Ambient Temperature
5 to 120 F (-15 to 50 C)
Valve Body Material
Cast Aluminum
Power Consumption
11 VA inrush, 8.5 VA holding on 50 or 60 Hz
Weight (kg)
0.25
Pilot Supply Minimum
25 psig (1.73 bar)
Width (mm)
130
