W6676A0401W ROSS Controls Electronic Components
Part#:W6676A0401W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

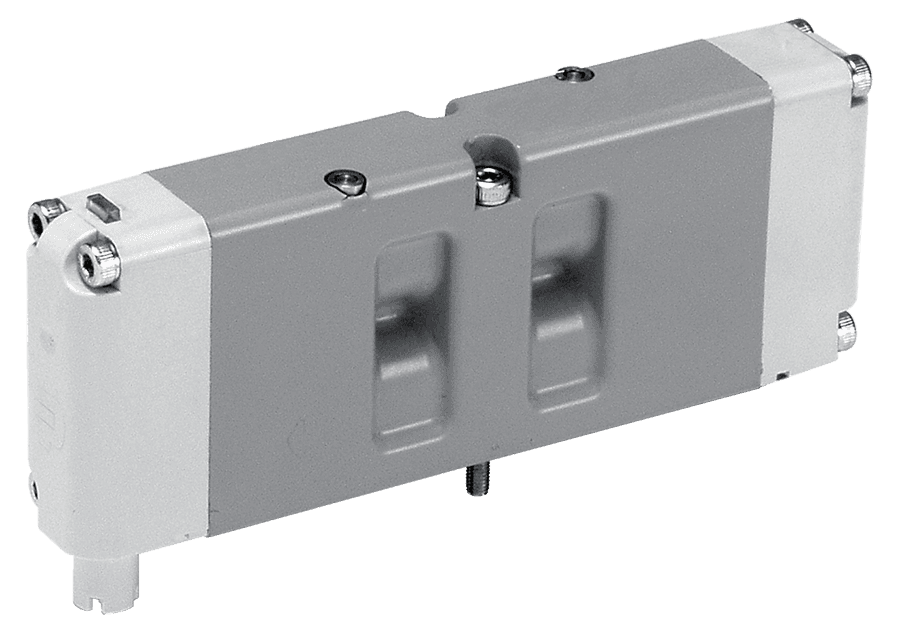

ISO 15407-2 Size 02, W66 Series, Single 5/2 Solenoid Valve, 24 VDC
Product Details
- Function 5/2 Single Solenoid
- Media Temperature 5 to 120 F (-15 to 50 C)
- Width (mm) 113
- Series W66
- Mounting Base Mounted
- Connection 4-pin, M12 micro
- Avg Cv 0.55
- Ambient Temperature 5 to 120 F (-15 to 50 C)
- Pilot Supply Minimum 30 psig (2.07 bar)
- Height (mm) 43
- Actuation Electrical
- Media Temperature (Celsius) -15 to 50
- Valve Body Material Cast Aluminum
- Default Position Normally Closed
- Ambient Temperature (Celsius) -15 to 50
- Valve Type Directional Control
- Pilot Type Internal
- Length 0.72 in (18 mm)
- Operating Pressure Vacuum to 145 psig (9.9 bar)
- Application General
- Size 02 (18 mm)
- Fluid Media Filtered air
- Width 4.43 in (113 mm)
- Return Spring
- Voltage 24 VDC
- Operating Pressure (bar) Vacuum to 9.9
- Weight (kg) 0.15
- Valve Standard ISO 15407-2
- Manual Override Non-locking
- Height 1.68 in (43 mm)
- Construction Spool and Sleeve
- Power Consumption 6.0 watt
- Length (mm) 18
- Weight 0.3 lb (0.15 kg)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6676A0401W on Applied Automation is $98.50. Order now.
