W6676A0407W ROSS Controls Electronic Components
Part#:W6676A0407W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

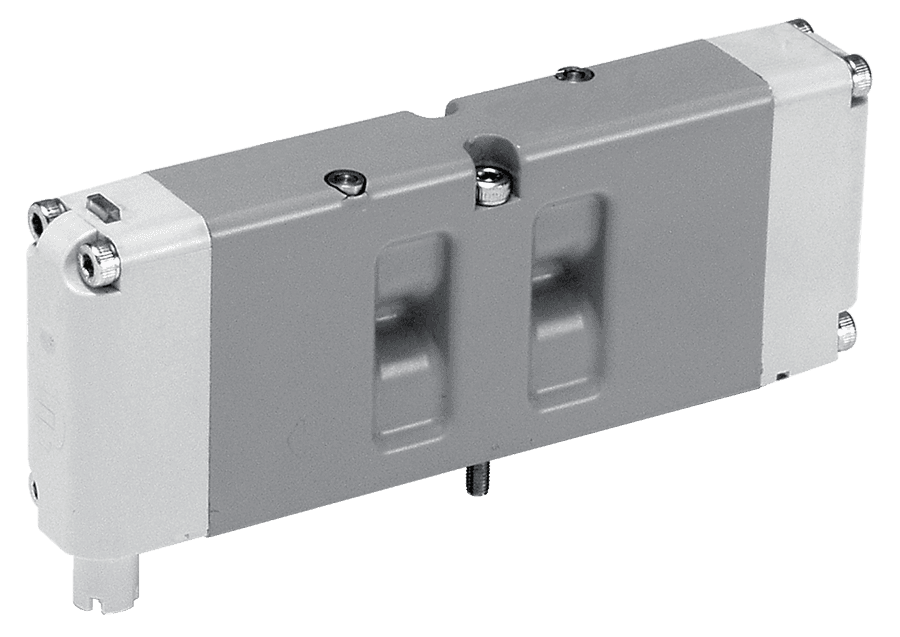

ISO 15407-2 Size 02, W66 Series, Double 5/2 Solenoid Valve, 24 VDC
Product Details
- Application General
- Size 02 (18 mm)
- Width (mm) 113
- Series W66
- Pilot Supply Minimum 30 psig (2.07 bar)
- Return Detented
- Pilot Type Internal
- Ambient Temperature (Celsius) -15 to 50
- Length (mm) 18
- Weight 0.4 lb (0.16 kg)
- Mounting Base Mounted
- Avg Cv 0.55
- Length 0.72 in (18 mm)
- Function 5/2 Double Solenoid
- Valve Standard ISO 15407-2
- Media Temperature 5 to 120 F (-15 to 50 C)
- Operating Pressure (bar) Vacuum to 9.9
- Height (mm) 43
- Connection 4-pin, M12 micro
- Operating Pressure Vacuum to 145 psig (9.9 bar)
- Height 1.68 in (43 mm)
- Construction Spool and Sleeve
- Ambient Temperature 5 to 120 F (-15 to 50 C)
- Default Position Normally Open
- Valve Type Directional Control
- Manual Override Non-locking
- Fluid Media Filtered air
- Valve Body Material Cast Aluminum
- Power Consumption 6.0 watt
- Media Temperature (Celsius) -15 to 50
- Weight (kg) 0.16
- Actuation Electrical
- Voltage 24 VDC
- Width 4.43 in (113 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6676A0407W on Applied Automation is $138.25. Order now.
