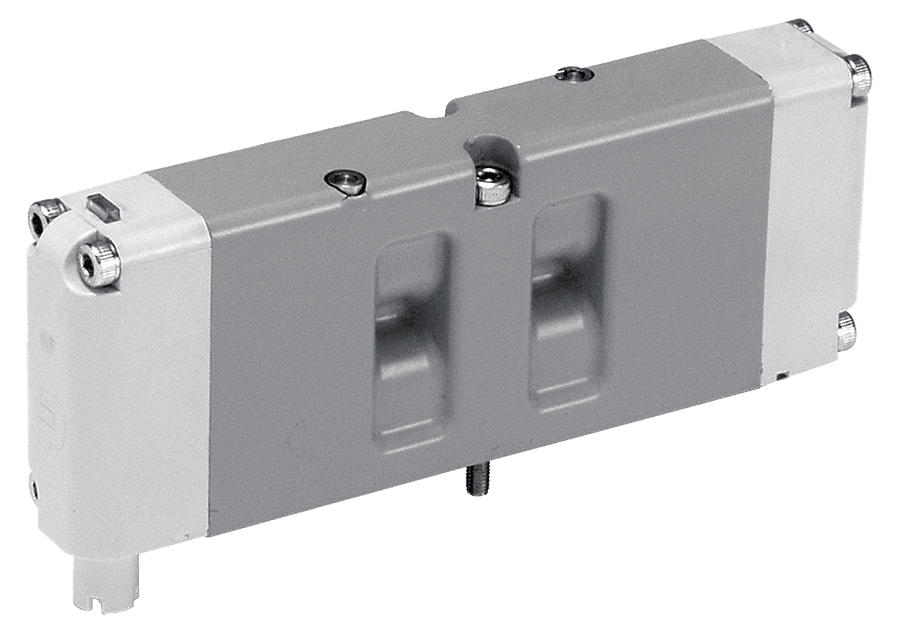

W6677A7427W ROSS Controls Electronic Components

Product Details

• Valve Standard
  ISO 15407-2
• Default Position
  Normally Open
• Width (mm)
  130
• Actuation
  Electrical
• Voltage
  120 VAC
• Pilot Supply Minimum
  25 psig (1.73 bar)
• Application
  General
• Operating Pressure
  Vacuum to 145 psig (9.9 bar)
• Height (mm)
  42
• Mounting
  Base Mounted
• Manual Override
  Locking
• Height
  1.66 in (42 mm)
• Ambient Temperature
  5 to 120 F (-15 to 50 C)
• Operating Pressure (bar)
  Vacuum to 9.9
• Function
  5/3 Double Solenoid
• Series
  W66
• Media Temperature (Celsius)
  -15 to 50
• Avg Cv
  1.1
• Center Position
  Open
• Valve Type
  Directional Control
Fluid Media
Filtered air
Power Consumption
11 VA inrush, 8.5 VA holding on 50 or 60 Hz
Width
5.10 in (130 mm)
Ambient Temperature (Celsius)
-15 to 50
Media Temperature
5 to 120 F (-15 to 50 C)
Pilot Type
External
Size
01 (26 mm)
Length (mm)
26
Weight (kg)
0.25
Construction
Spool and Sleeve
Valve Body Material
Cast Aluminum
Return
Detented
Length
1.02 in (26 mm)
Weight
0.6 lb (0.25 kg)
