W6677A0421Z ROSS Controls Electronic Components
Part#:W6677A0421Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

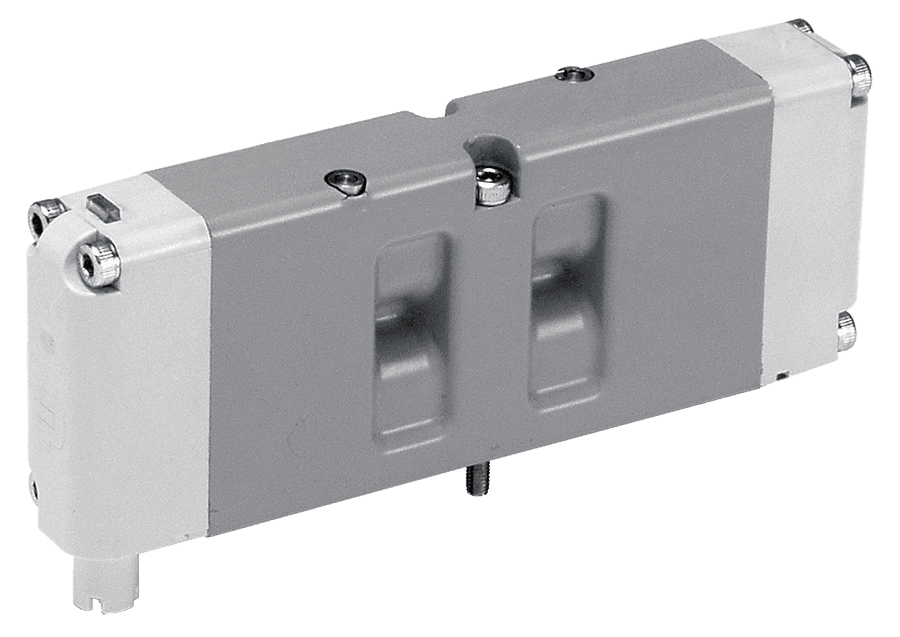

ISO 15407-2 Size 02, W66 Series, Double 5/3 Solenoid Valve, Closed Center, 120 VAC
Product Details
- Valve Type Directional Control
- Ambient Temperature (Celsius) -15 to 50
- Width 4.43 in (113 mm)
- Manual Override Locking
- Actuation Electrical
- Length 0.72 in (18 mm)
- Height 1.68 in (43 mm)
- Weight (kg) 0.16
- Default Position Normally Closed
- Power Consumption 6.0 watt
- Length (mm) 18
- Function 5/3 Double Solenoid
- Application General
- Ambient Temperature 5 to 120 F (-15 to 50 C)
- Width (mm) 113
- Construction Spool and Sleeve
- Media Temperature (Celsius) -15 to 50
- Height (mm) 43
- Mounting Base Mounted
- Media Temperature 5 to 120 F (-15 to 50 C)
- Valve Body Material Cast Aluminum
- Valve Standard ISO 15407-2
- Avg Cv 0.55
- Pilot Supply Minimum 30 psig (2.07 bar)
- Return Detented
- Center Position Closed
- Size 02 (18 mm)
- Operating Pressure Vacuum to 145 psig (9.9 bar)
- Weight 0.4 lb (0.16 kg)
- Series W66
- Voltage 24 VDC
- Operating Pressure (bar) Vacuum to 9.9
- Connection 4-pin, M12 micro
- Fluid Media Filtered air
- Pilot Type External
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
