W6677A1401W ROSS Controls Electronic Components
Part#:W6677A1401W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

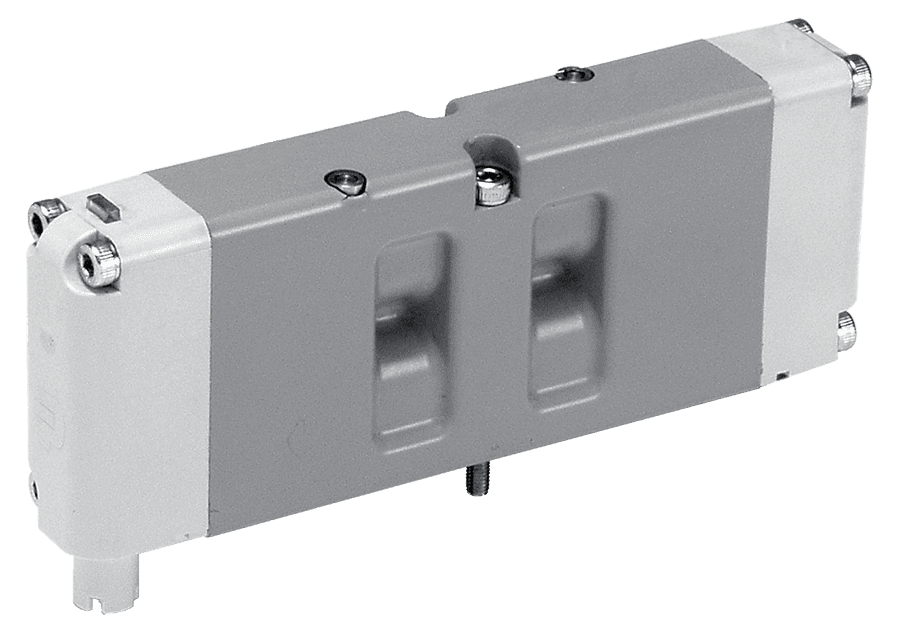

ISO 15407-2 Size 01, W66 Series, Double 5/3 Solenoid Valve, Closed Center, 24 VDC
Product Details
- Center Position Closed
- Valve Body Material Cast Aluminum
- Length (mm) 26
- Media Temperature 5 to 120 F (-15 to 50 C)
- Size 01 (26 mm)
- Function 5/3 Double Solenoid
- Mounting Base Mounted
- Return Detented
- Height 1.66 in (42 mm)
- Actuation Electrical
- Operating Pressure Vacuum to 145 psig (9.9 bar)
- Power Consumption 11 VA inrush, 8.5 VA holding on 50 or 60 Hz
- Default Position Normally Closed
- Fluid Media Filtered air
- Voltage 120 VAC
- Width (mm) 130
- Valve Standard ISO 15407-2
- Media Temperature (Celsius) -15 to 50
- Weight 0.6 lb (0.25 kg)
- Pilot Type Internal
- Operating Pressure (bar) Vacuum to 9.9
- Width 5.10 in (130 mm)
- Series W66
- Ambient Temperature 5 to 120 F (-15 to 50 C)
- Pilot Supply Minimum 25 psig (1.73 bar)
- Valve Type Directional Control
- Application General
- Ambient Temperature (Celsius) -15 to 50
- Length 1.02 in (26 mm)
- Height (mm) 42
- Construction Spool and Sleeve
- Manual Override Non-locking
- Avg Cv 1.1
- Weight (kg) 0.25
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6677A1401W on Applied Automation is $172.75. Order now.
