D1614B2020Z ROSS Controls Electronic Components
Part#:D1614B2020Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

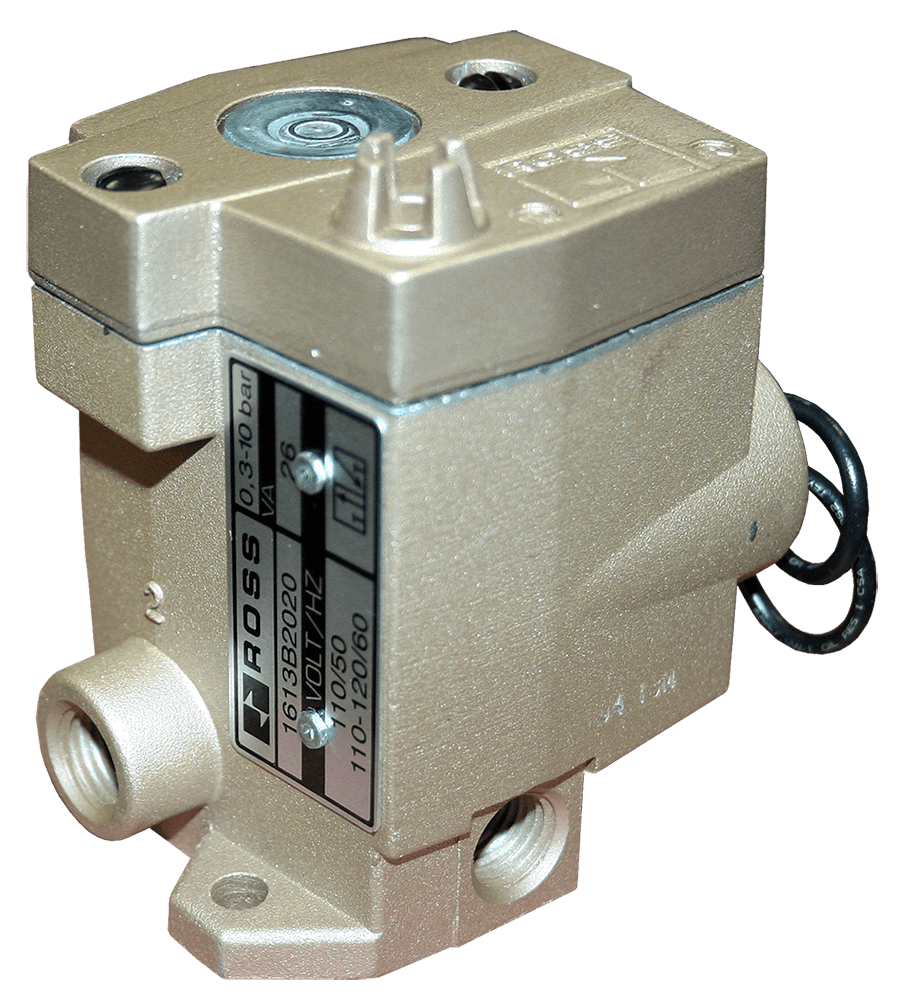

16 Series, 3/2-Way, Single Solenoid Valve, Normally Open, Port (In) G1/4", Port (Out) G1/4", 110/120 VAC
Product Details
- Connection Hardwired
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Default Position Normally Open
- Mounting Inline
- Ambient Temperature (Celcius) 4 to 50
- Width (mm) 73
- Voltage 110/120 VAC
- Media Temperature 40 to 175 F (4 to 80 C)
- Media Temperature (Celcius) 4 to 80
- Valve Body Material Cast Aluminum
- Inlet Pipe Size 1/4"
- Return Spring
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Weight (kg) 0.6
- Construction Poppet
- Length (mm) 66
- Outlet Pipe Size 1/4"
- Series 16
- Fluid Media Filtered air
- Height (mm) 95
- Thread Type G
- Application General
- Avg Cv 0.3
- Length 2.58 in (66 mm)
- Seal Material Buna-N
- Exhaust Pipe Size 1/4"
- Function 3/2 Single Solenoid
- Duty Rating Continuous Duty
- Poppet/Spool Material Acetal
- Power Consumption 87 VA inrush, 30 VA holding on 50 or 60 Hz
- Actuation Electrical
- Operating Pressure (bar) 0.3 to 10
- Height 3.73 in (95 mm)
- Valve Type Directional Control
- Manual Override Non-locking
- Width 2.88 in (73 mm)
- Weight 1.4 lb (0.6 kg)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
