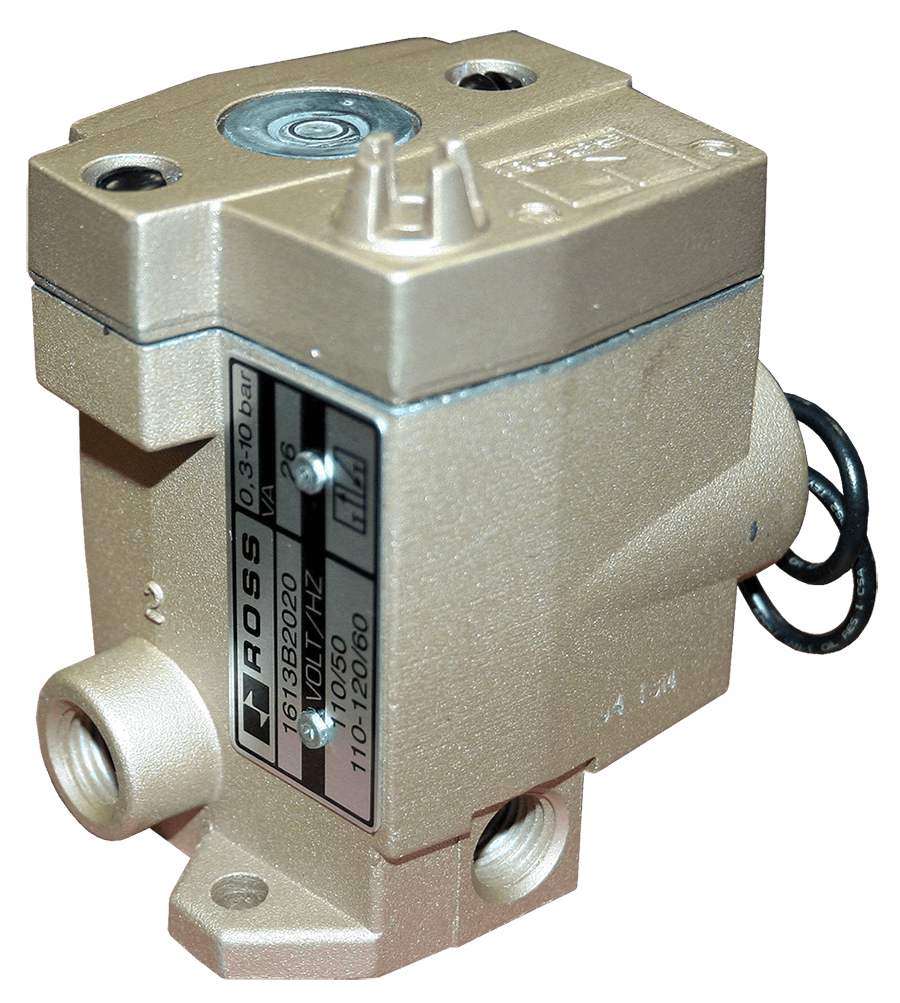

D1613B2020W ROSS Controls Electronic Components
Part#:D1613B2020W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) G1/8", Port (Out) G1/8", 24 VDC
Product Details
- Exhaust Pipe Size 1/8"
- Manual Override Non-locking
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal
- Application General
- Return Spring
- Media Temperature (Celcius) 4 to 80
- Height (mm) 95
- Thread Type G
- Function 3/2 Single Solenoid
- Connection Hardwired
- Media Temperature 40 to 175 F (4 to 80 C)
- Width (mm) 73
- Actuation Electrical
- Duty Rating Continuous Duty
- Operating Pressure (bar) 0.3 to 10
- Outlet Pipe Size 1/8"
- Avg Cv 0.3
- Length 2.58 in (66 mm)
- Series 16
- Default Position Normally Closed
- Mounting Inline
- Voltage 24 VDC
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Length (mm) 66
- Width 2.88 in (73 mm)
- Seal Material Buna-N
- Valve Body Material Cast Aluminum
- Inlet Pipe Size 1/8"
- Valve Type Directional Control
- Fluid Media Filtered air
- Power Consumption 14 watts
- Height 3.73 in (95 mm)
- Weight (kg) 0.6
- Construction Poppet
- Ambient Temperature (Celcius) 4 to 50
- Weight 1.4 lb (0.6 kg)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
