D1613B1020Z ROSS Controls Electronic Components
Part#:D1613B1020Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

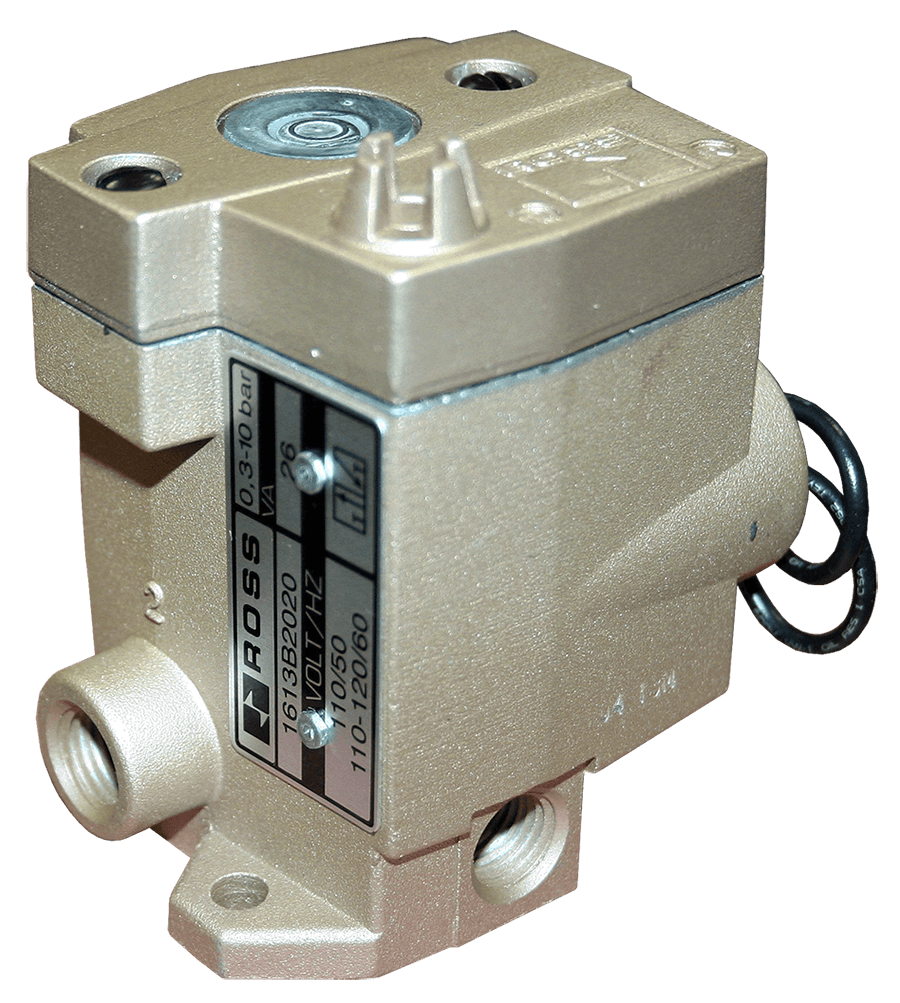

16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) G1/8", Port (Out) G1/8", 110/120 VAC
Product Details
- Valve Type Directional Control
- Duty Rating Continuous Duty
- Media Temperature 40 to 175 F (4 to 80 C)
- Height (mm) 95
- Outlet Pipe Size 1/8"
- Connection Hardwired
- Function 3/2 Single Solenoid
- Avg Cv 0.3
- Media Temperature (Celcius) 4 to 80
- Operating Pressure (bar) 0.3 to 10
- Length 2.58 in (66 mm)
- Width 2.88 in (73 mm)
- Poppet/Spool Material Acetal
- Weight (kg) 0.6
- Power Consumption 87 VA inrush, 30 VA holding on 50 or 60 Hz
- Default Position Normally Closed
- Ambient Temperature (Celcius) 4 to 50
- Width (mm) 73
- Weight 1.4 lb (0.6 kg)
- Seal Material Buna-N
- Actuation Electrical
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Length (mm) 66
- Voltage 110/120 VAC
- Mounting Inline
- Fluid Media Filtered air
- Thread Type G
- Construction Poppet
- Series 16
- Valve Body Material Cast Aluminum
- Inlet Pipe Size 1/8"
- Exhaust Pipe Size 1/8"
- Application General
- Manual Override Non-locking
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Height 3.73 in (95 mm)
- Return Spring
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
