D1613C2322W ROSS Controls Electronic Components
Part#:D1613C2322W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

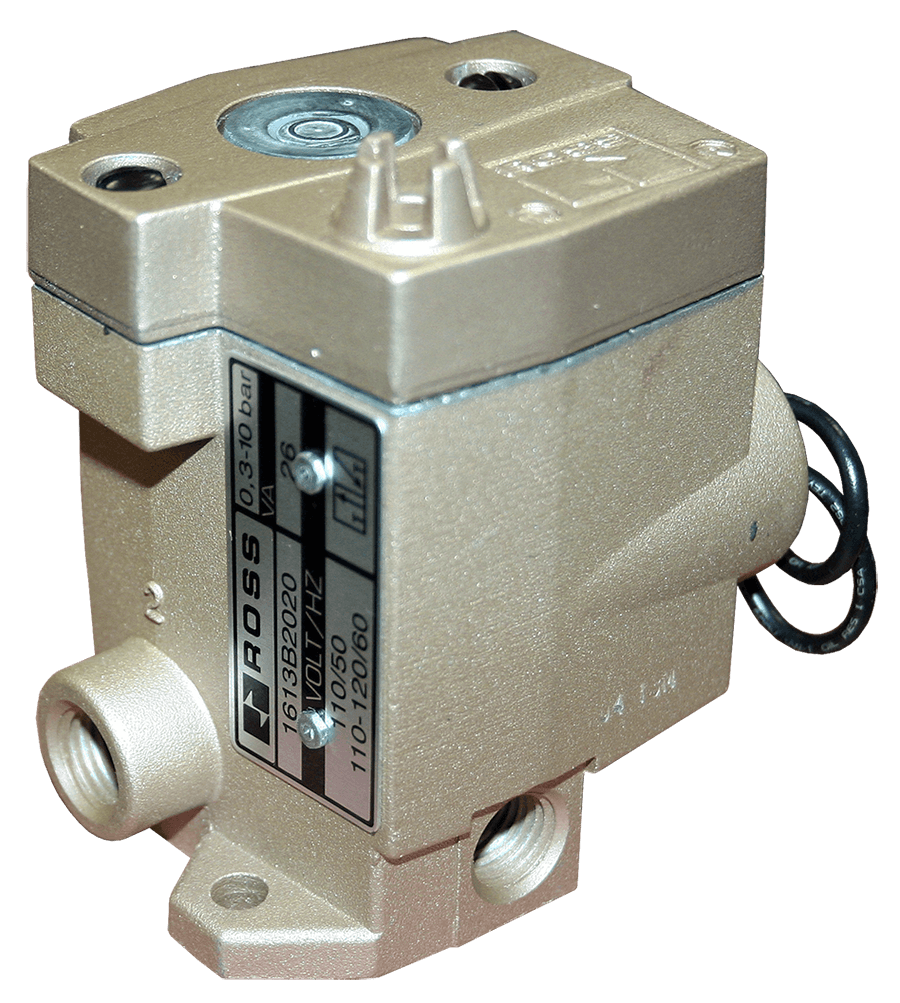

16 Series, 3/2-Way, Single Solenoid Valve, Normally Closed, Port (In) G1/4", Port (Out) G1/4", 24 VDC
Product Details
- Application General
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Media Temperature (Celcius) 4 to 80
- Actuation Electrical
- Valve Type Directional Control
- Duty Rating Continuous Duty
- Exhaust Pipe Size 1/4"
- Weight 2.4 lb (1.1 kg)
- Return Spring
- Media Temperature 40 to 175 F (4 to 80 C)
- Seal Material Buna-N
- Length 2.58 in (66 mm)
- Thread Type G
- Mounting Inline
- Voltage 24 VDC
- Valve Body Material Cast Aluminum
- Width (mm) 70
- Height (mm) 120
- Series 16
- Avg Cv 0.3
- Operating Pressure 5 to 150 psig (0.3 to 10 bar)
- Construction Poppet
- Ambient Temperature (Celcius) 4 to 50
- Operating Pressure (bar) 0.3 to 10
- Width 2.75 in (70 mm)
- Function 3/2 Single Solenoid
- Manual Override Non-locking
- Poppet/Spool Material Acetal
- Outlet Pipe Size 1/4"
- Weight (kg) 1.1
- Connection Hardwired
- Length (mm) 66
- Inlet Pipe Size 1/4"
- Height 4.73 in (120 mm)
- Default Position Normally Closed
- Power Consumption 14 watts
- Fluid Media Filtered air
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
