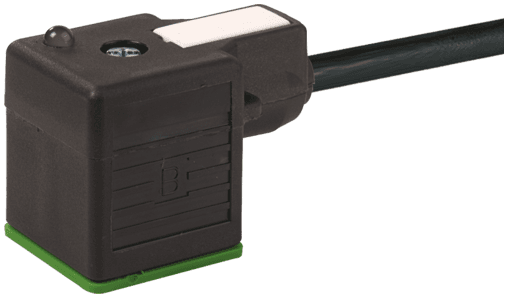

7000-18041-6160500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  311 g
• Series
  Connector Systems
• Operating voltage
  110 V AC/DC ±10%
• Cable weight [g/m]
  61,6 g
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Switch off peak
  max. 250 V
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Shore hardness (jacket)
  80 ±5 A
• Temperature range (fixed)
  -30...+70 °C
• Approval (cable)
  CE conform
• Material (wire isolation)
  PVC
• Material (jacket)
  PVC
• Nominal voltage
  300/500 V AC
• Protection
  IP67 inserted and tightened (EN 60529)
• Cable Type
  1 (PVC)
• Shore hardness (wire isolation)
  43 ±5 D
• Bend radius (fixed)
  5× outer Ø
• Operating current per contact
  max. 4 A
• Single wire Ø (core)
  0.2 mm
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Test voltage
3000 V AC
Locking of ports
M3 (recommended torque 0.4 Nm)
Cable identification
616
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
5.9 mm ±5%
Current load capacity
to DIN VDE 0298-4
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.8 mm ±5%
Temperature range (mobile)
-5...+70 °C
Housing
Black plastic (gray on request)
Diameter (core)
3× 0.75 mm²
Shield
no
Cable length
5 m
Form
18041
AWG
similar to AWG 18
Stranding combination
3 wires twisted
Bend radius (moving)
10× outer Ø
Switch off delay time
max. 20 ms
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Color (jacket)
black
Product article number of manufacturer
7000-18041-6160500
