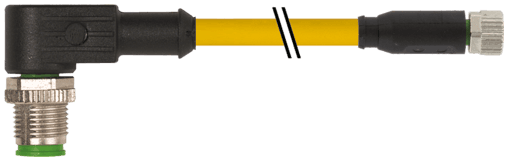

7000-40661-0100500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  154 g
• Series
  Connector Systems
• Rated surge voltage
  1.5 kV
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Stranding combination
  3 wires twisted
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Material (wire isolation)
  PVC
• Form
  40661
• Shore hardness (wire isolation)
  45 ±5 D
• Material (jacket)
  PVC
• Operating current per contact
  max. 4 A
• Material (wire)
  Cu wire, bare
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Temperature range (mobile)
  -5...+80 °C
• Cable length
  5 m
• Cable Type
  1 (PVC)
• Diameter (core)
  3× 0.25 mm²
Test voltage
2000 V AC
Locking of ports
Screw thread (M8/M12×1 mm) recommended torque 0.4/0.6 Nm, self-securing
Color/numbering of wires
br, bk, bl
Outer-Ø (jacket)
4.5 mm ±5%
Product article number of manufacturer
7000-40661-0100500
Cable weight [g/m]
29,37 g
AWG
similar to AWG 24
Shore hardness (jacket)
85 ±5 A
Temperature range (fixed)
-30...+80 °C
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
14× 0.15 mm (multi-strand wire class 5)
Nominal voltage
UL 300 V AC
Cable identification
010
Resistor (core)
max. 79 Ω/km (20 °C)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Color (jacket)
yellow
Bend radius (moving)
10× outer Ø
Operating voltage
max. 250 V AC/DC
Single wire Ø (core)
0.15 mm
Shield
no
Current load capacity
to DIN VDE 0298-4
Bend radius (fixed)
5× outer Ø
