AZM300Z-ST-1P2P-A-T Schmersal Safety Switches

AZM300Z-ST-1P2P-A-T on Applied Automation
Schmersal

Part#:AZM300Z-ST-1P2P-A-T

Alt. Part#:103011112

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

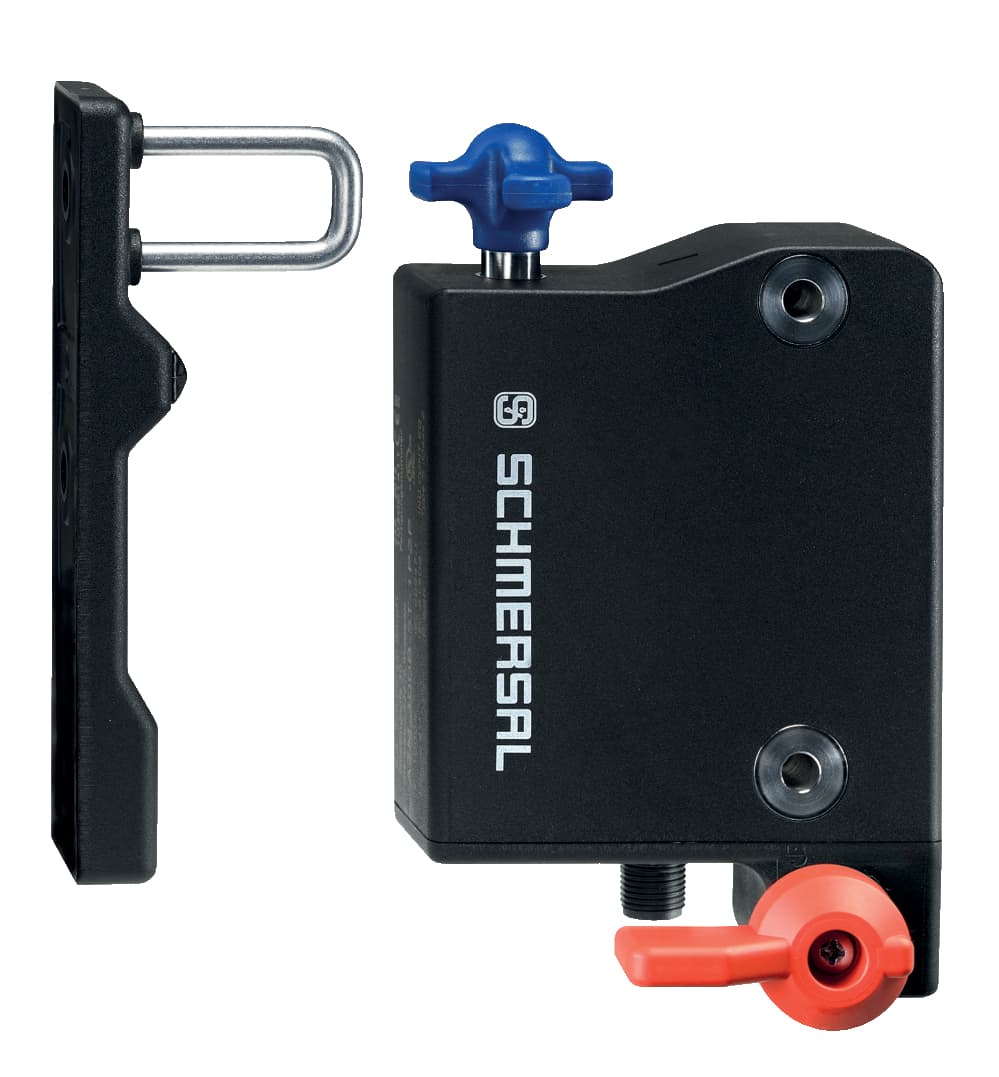

AZM300Z-ST-1P2P-A-T Schmersal - Solenoid interlocks; Guard locking monitored; Connector M12, 8-pole; Emergency exit; Universal coding with RFID technology; Diagnostic output; Power to lock; Hygienic design; Protection class IP 69; Suitable for mounting to profile systems; Thermoplastic

Product Details

  • Active principle
    RFID
  • Emergency exit
    Yes
  • Angular offset between interlocking device and actuator, maximum
    2 °
  • Tightening torque of the fixing screws, minimum
    6 Nm
  • Length of sensor chain, maximum
    200 m
  • Ambient temperature, maximum
    +60 °C
  • Restistance to shock
    30 g / 11 ms
  • Operating voltage, minimum
    20.4 VDC
  • Coding level according to ISO 14119
    Low
  • Duration of risk, maximum
    200 ms
  • Safety functions
    Yes
  • Clamping force, maximum Fmax
    1,500 N
  • Terminal Connector
    Connector M12, 8-pole, A-coded
  • Width of sensor
    87.5 mm
  • Protection rating
    III
  • No-load supply current I0
    100 mA
  • Duty cycle solenoid
    100 %
  • Transmit power, maximum
    -6 dB/m
  • Short circuit detection
    Yes
  • Number of fail-safe digital outputs
    2
  • Ensured switch distance ON Sao
    1 mm
  • Note (length of the sensor chain)
    Cable length and cross-section change the voltage drop dependiing on the output current
  • Storage and transport temperature, maximum
    +90 °C
  • Zulässige Aufstellhöhe über NN, maximum
    2,000 m
  • Time to readiness, maximum
    5,000 ms
  • Standards
    IEC 61508, IEC 60947-5-3, EN ISO 13849-1
  • Latching force, adjustable, position 2
    50 N
  • Storage and transport temperature, minimum
    -10 °C
  • Notes (Power supply, general)
    stabilised PELV power supply
  • Test pulse interval, minimum
    100 ms
  • Voltage, Utilisation category DC12
    24 VDC
  • Type of the fixing screws
    2x M6
  • general information
    Universal coding
  • Series-wiring
    Yes
  • Degree of protection
    IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
  • Operating voltage, maximum
    26.4 VDC
  • Classification ZVEI CB24I, Sink
    C1, C2
  • Short-circuit recognition
    Yes
  • Response time safety outputs in case of switch-off by actuator, maximum
    100 ms
  • Latching force, adjustable, position 1
    25 N
  • Ambient temperature, minimum
    +0 °C
  • Relative humidity, maximum
    93 %
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Required rated short-circuit current to EN 60947-5-1
    100 A
  • Frequency band RFID
    125 kHz
  • Response time safety outputs in case of switch-off by safety inputs, maximum
    1.5 ms
  • Guard locking monitored
    Yes
  • Mechanical life, minimum
    1,000,000 Operations
  • Switch distance
    2 mm
  • Note (series connection of the sensors)
    Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
  • Rated insulation voltage Ui
    32 VDC
  • Enclosure material
    Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Latching
    Yes
  • Integral System Diagnostics, status
    Yes
  • Clamping force in accordance with ISO14119 Fzh
    1,150 N
  • Length of sensor
    146 mm
  • Ensured switch distance OFF Sar
    20 mm
  • Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm
  • Overvoltage category
    III
  • Switching frequency, maximum
    0.5 Hz
  • Gross weight
    610 g
  • Note (Mechanical lifetime)
    When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
  • Tightening torque for the fixing screws, maximum
    7 Nm
  • Height of sensor
    55 mm
  • Degree of pollution to IEC/EN 60664-1
    3
  • External wiring and device fuse rating
    2 A gG
  • Current leakage Ir
    0.5 mA
  • Note (Relative humidity)
    non-condensing, non-icing
  • Switching thresholds
    −3 V … 5 V (Low), 15 V … 30 V (High)
  • Current, Utilisation category DC12
    0.05 A
  • Current, Utilisation category DC13
    0.05 A
  • Current consumption with solenoid ON, average
    200 mA
  • Voltage, Utilisation category DC13
    24 VDC
  • Current consumption with solenoid ON, peak
    350 mA / 200 ms
  • Classification ZVEI CB24I, Source
    C2
  • Voltage drop Ud, maximum
    4 V
  • Current consumption at 24V
    5 mA
  • Versions
    short-circuit proof, p-type
  • Test pulse duration, maximum
    0.5 ms
  • Test pulse interval, typical
    1000 ms

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM300Z-ST-1P2P-A-T on Applied Automation is $909.00. Order now.
