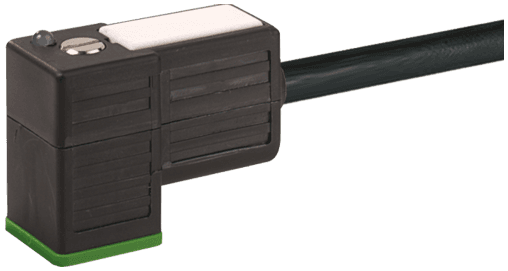

7000-94021-6160100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  72 g
• Series
  Connector Systems
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• Cable identification
  616
• AWG
  similar to AWG 18
• Shore hardness (jacket)
  80 ±5 A
• Bend radius (moving)
  10× outer Ø
• Switch off peak
  max. 55 V
• Cable weight [g/m]
  61,6 g
• Single wire Ø (core)
  0.2 mm
• Test voltage
  3000 V AC
• Temperature range (mobile)
  -5...+70 °C
• Protection
  IP67 inserted and tightened (EN 60529)
• Approval (cable)
  CE conform
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• Rated surge voltage
  0.8 kV
• Cable Type
  1 (PVC)
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Shield
  no
Product article number of manufacturer
7000-94021-6160100
Switch off delay time
max. 20 ms
Diameter (core)
3× 0.75 mm²
Outer-Ø (jacket)
5.9 mm ±5%
Cable length
1 m
Form
94021
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Color (jacket)
black
Housing
Black plastic (gray on request)
Resistor (core)
max. 26 Ω/km (20 °C)
Stranding combination
3 wires twisted
Material (jacket)
PVC
Current load capacity
to DIN VDE 0298-4
Operating current per contact
max. 4 A
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
43 ±5 D
chemical resistance
good resistance to oil, gasoline and chemicals
Temperature range
-25...+85 °C, depending on cable quality
Material (wire isolation)
PVC
Temperature range (fixed)
-30...+70 °C
Operating voltage
24 V AC ±20% / DC ±25%
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
300/500 V AC
