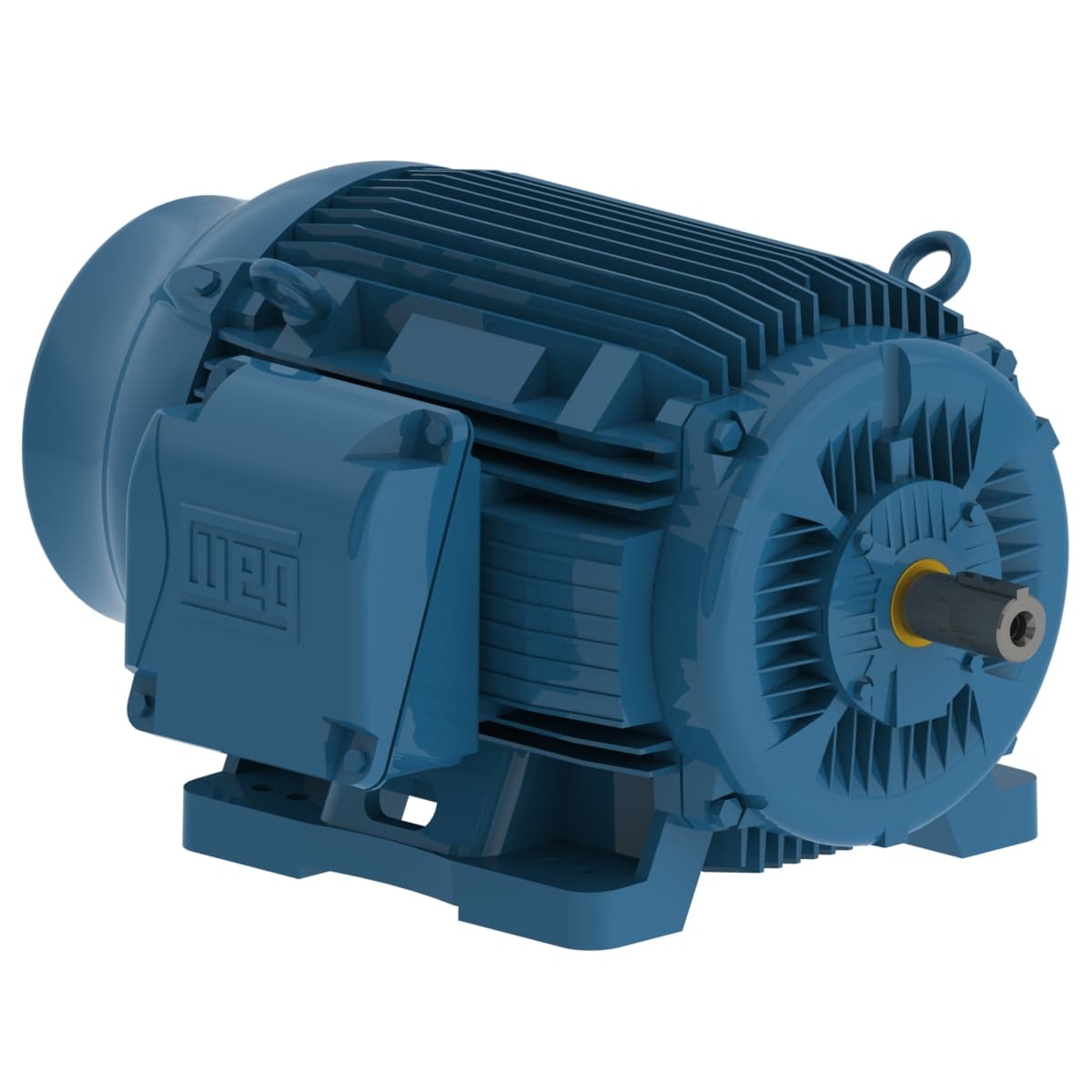

07509ST3QIE444T-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  460 V
• Output Rating
  75 HP
• Rated Speed
  890 rpm
• Flange Type
  Without
• Slip
  1.11 %
• Breakdown torque
  200 %
• Approx. weight³
  1495 lb
• Number of Poles
  8
• L. R. Amperes
  598 A
• Starting Method
  Direct On Line
• Standard
  NEMA MG-1
• Locked rotor torque
  170 %
• Locked rotor time
  32s (cold) 18s (hot)
• Rotation¹
  Both (CW and CCW)
• Terminal box¹
  Left position
• Frequency
  60 Hz
• Design
  B
• Degree of Protection
  IP56
• Number of poles
  8
Frame
444/5T
LRC
6.4x(Code H)
Insulation Class
F
Noise level²
63.0 dB(A)
Flange
Without
Output
75 HP (55 kW)
No load current
40.0 A
Ambient temperature
-20°C to +40°C
Synchronous speed
900 rpm
Rated speed
890 rpm
Moment of inertia (J)
73.6 sq.ft.lb
Altitude
1000 m.a.s.l.
Output rating
75 HP
Rated voltage
460 V
Service factor
1.25
Voltage
460 V
Rated current
93.4 A
Temperature rise
80 K
Enclosure
IC411 - TEFC
Rated torque
443 ft.lb
Duty Cycle
Cont.(S1)
Mounting
F-1
