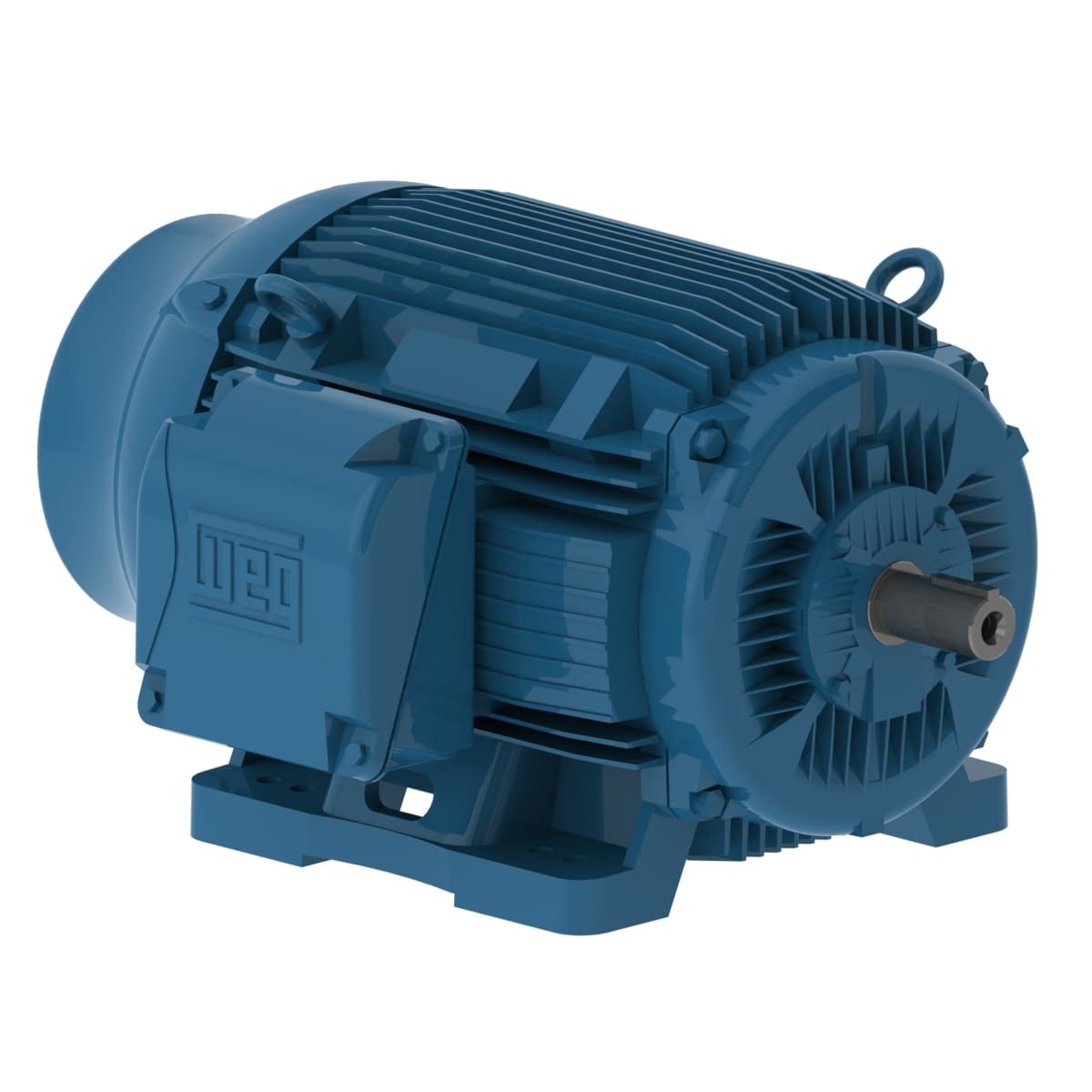

07509ST3HIE444T-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  575 V
• Output Rating
  75 HP
• Rated Speed
  890 rpm
• Flange Type
  Without
• Number of Poles
  8
• Output
  75 HP (55 kW)
• Rated current
  74.7 A
• Locked rotor torque
  170 %
• LRC
  6.4x(Code H)
• Duty Cycle
  Cont.(S1)
• Rotation¹
  Both (CW and CCW)
• Standard
  NEMA MG-1
• Flange
  Without
• Slip
  1.11 %
• L. R. Amperes
  478 A
• Rated voltage
  575 V
• Rated torque
  443 ft.lb
• Locked rotor time
  32s (cold) 18s (hot)
• Service factor
  1.25
Ambient temperature
-20°C to +40°C
Degree of Protection
IP56
Approx. weight³
1495 lb
Synchronous speed
900 rpm
Number of poles
8
Design
B
Starting Method
Direct On Line
Mounting
F-1
Terminal box¹
Left position
Frequency
60 Hz
Rated speed
890 rpm
No load current
32.0 A
Temperature rise
80 K
Altitude
1000 m.a.s.l.
Voltage
575 V
Frame
444/5T
Breakdown torque
200 %
Moment of inertia (J)
73.6 sq.ft.lb
Insulation Class
F
Enclosure
IC411 - TEFC
Noise level²
63.0 dB(A)
Output rating
75 HP
