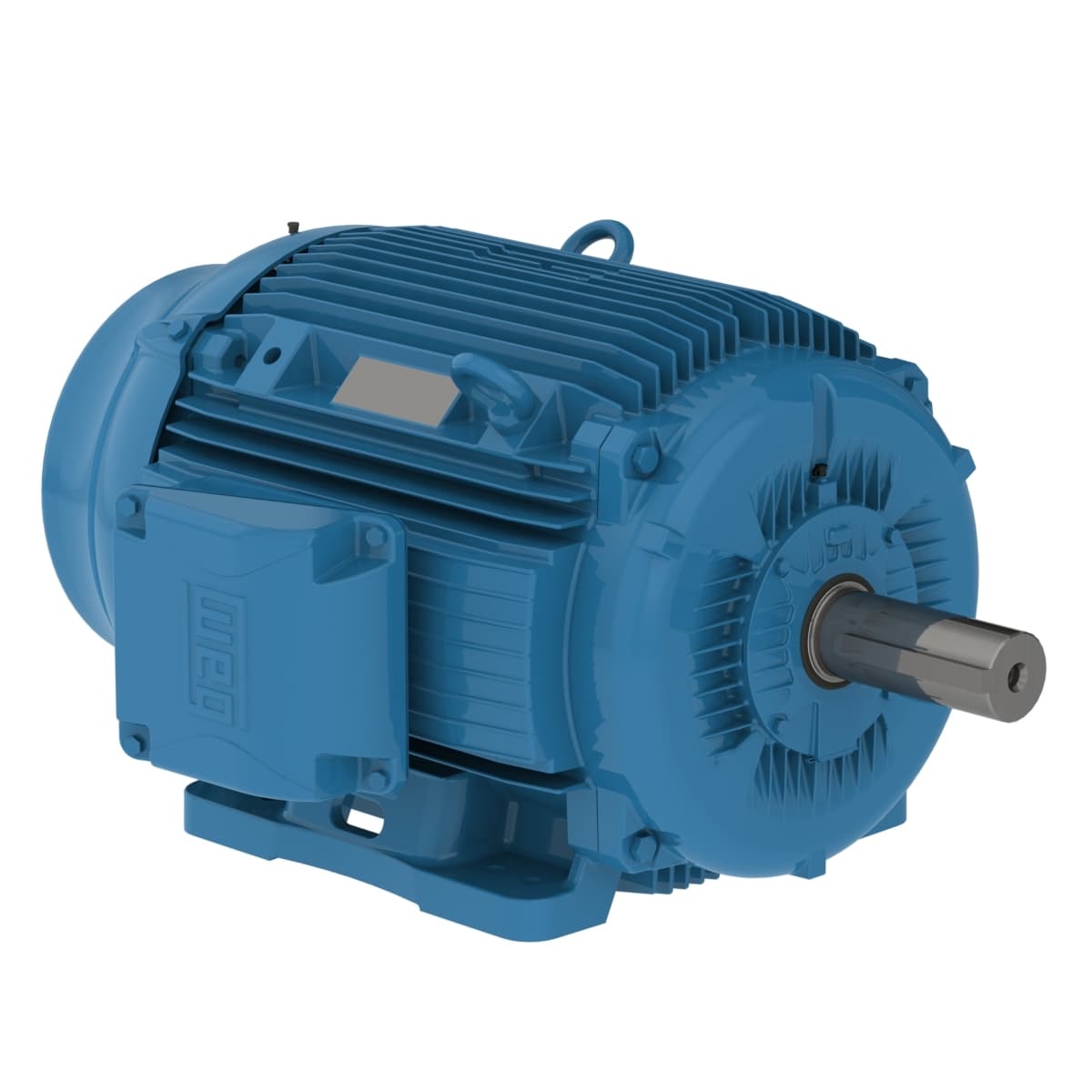

07509ET3GKD444T-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  460 V
• Output Rating
  75 HP
• Rated Speed
  890 rpm
• Flange Type
  Without
• L. R. Amperes
  558 A
• Rated torque
  443 ft.lb
• Duty Cycle
  Cont.(S1)
• Flange
  Without
• Output
  75 HP (55 kW)
• LRC
  6.0x(Code G)
• Locked rotor time
  32s (cold) 18s (hot)
• Approx. weight³
  1444 lb
• Terminal box¹
  Left position
• Slip
  1.11 %
• Mounting
  F-1
• Noise level²
  63.0 dB(A)
• Frame
  444/5T
• Design
  A
• Ambient temperature
  -20°C to +40°C
Standard
NEMA MG-1
No load current
40.0 A
Altitude
1000 m.a.s.l.
Voltage
460 V
Rated voltage
460 V
Temperature rise
80 K
Degree of Protection
IP55
Synchronous speed
900 rpm
Rated speed
890 rpm
Breakdown torque
210 %
Locked rotor torque
180 %
Enclosure
IC411 - TEFC
Moment of inertia (J)
73.6 sq.ft.lb
Output rating
75 HP
Frequency
60 Hz
Rated current
93.0 A
Insulation Class
F
Number of Poles
8
Starting Method
Direct On Line
Rotation¹
Both (CW and CCW)
Number of poles
8
