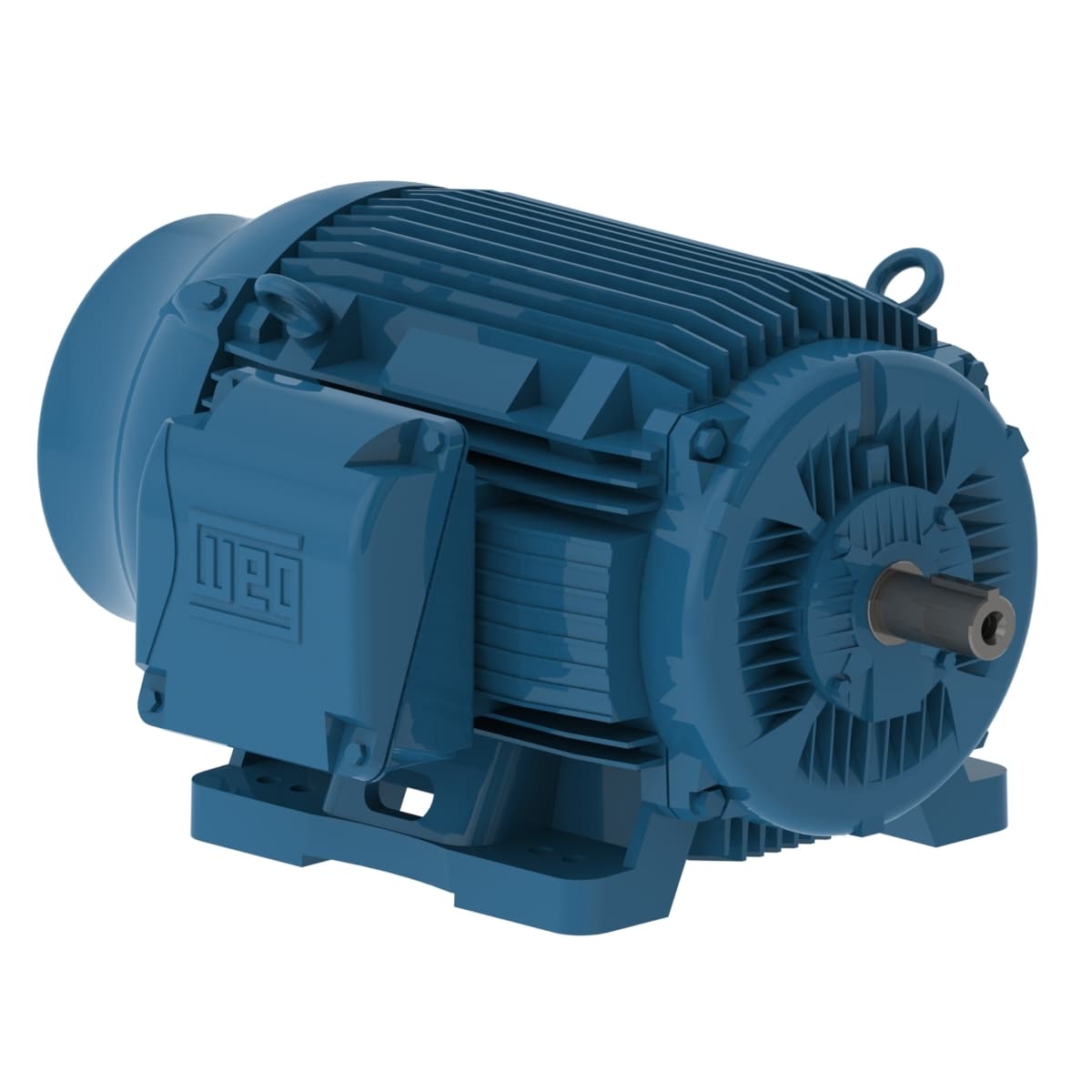

07509ET3QRB444TF2-W2 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  460 V
• Output Rating
  75 HP
• Rated Speed
  890 rpm
• Flange Type
  Without
• Service factor
  1.25
• Altitude
  1000 m.a.s.l.
• Rated current
  93.4 A
• Output rating
  75 HP
• Rated voltage
  460 V
• Breakdown torque
  200 %
• Rotation¹
  Both (CW and CCW)
• Terminal box¹
  Right position
• Frequency
  60 Hz
• LRC
  6.4x(Code H)
• Design
  B
• Noise level²
  63.0 dB(A)
• Moment of inertia (J)
  73.6 sq.ft.lb
• Degree of Protection
  IP55
• L. R. Amperes
  598 A
Flange
Without
No load current
40.0 A
Duty Cycle
Cont.(S1)
Mounting
F-2
Frame
444/5T
Temperature rise
80 K
Number of poles
8
Slip
1.11 %
Rated torque
443 ft.lb
Starting Method
Direct On Line
Standard
NEMA MG-1
Rated speed
890 rpm
Locked rotor time
32s (cold) 18s (hot)
Ambient temperature
-20°C to +40°C
Voltage
460 V
Output
75 HP (55 kW)
Locked rotor torque
170 %
Approx. weight³
1444 lb
Enclosure
IC411 - TEFC
Number of Poles
8
Insulation Class
F
Synchronous speed
900 rpm
