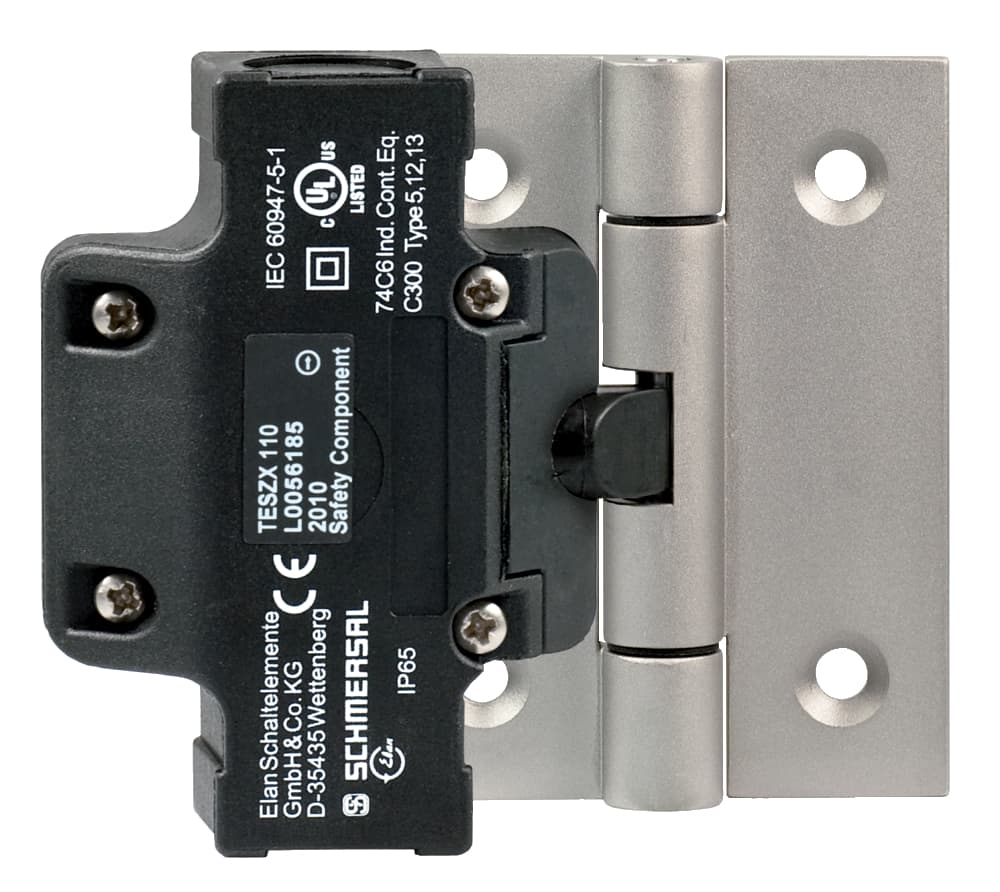

TESZX1102/S Schmersal Safety Switches

Product Details

• Gross weight
  500 g
• Length x Width x Height
  Suitable for mounting to profile systems: 40 mm
• Number of auxiliary contacts
  1
• Switching principle
  Creep circuit element
• Utilisation category AC-15
  2 A
• Terminal Connector
  Screw connection
• Mechanical life, minimum
  1,000,000 Operations
• Width of sensor
  111.5 mm
• Utilisation category DC-13
  1 A
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Cable section, maximum
  1 mm²
• Material of the contacts, electrical
  Silver
• Rated insulation voltage Ui
  250 V
• Positive break force, minimum
  1 N
• Length of sensor
  36 mm
• Switching element
  NO contact, NC contact
• Positive break angle
  14 °
• mounting hinge
  Yes
• Height of sensor
  92 mm
• Number of safety contacts
  2
Cable section, minimum
0.5 mm²
Ambient temperature, maximum
+65 °C
Rated impulse withstand voltage Uimp
2.5 kV
Standards
IEC/EN 60947-5-1, BG-GS-ET-15
Degree of protection
IP65
Thermal test current
2.5 A
Material of the hinge
Stainless steel
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Ambient temperature, minimum
-25 °C
Switching frequency
120 /h
