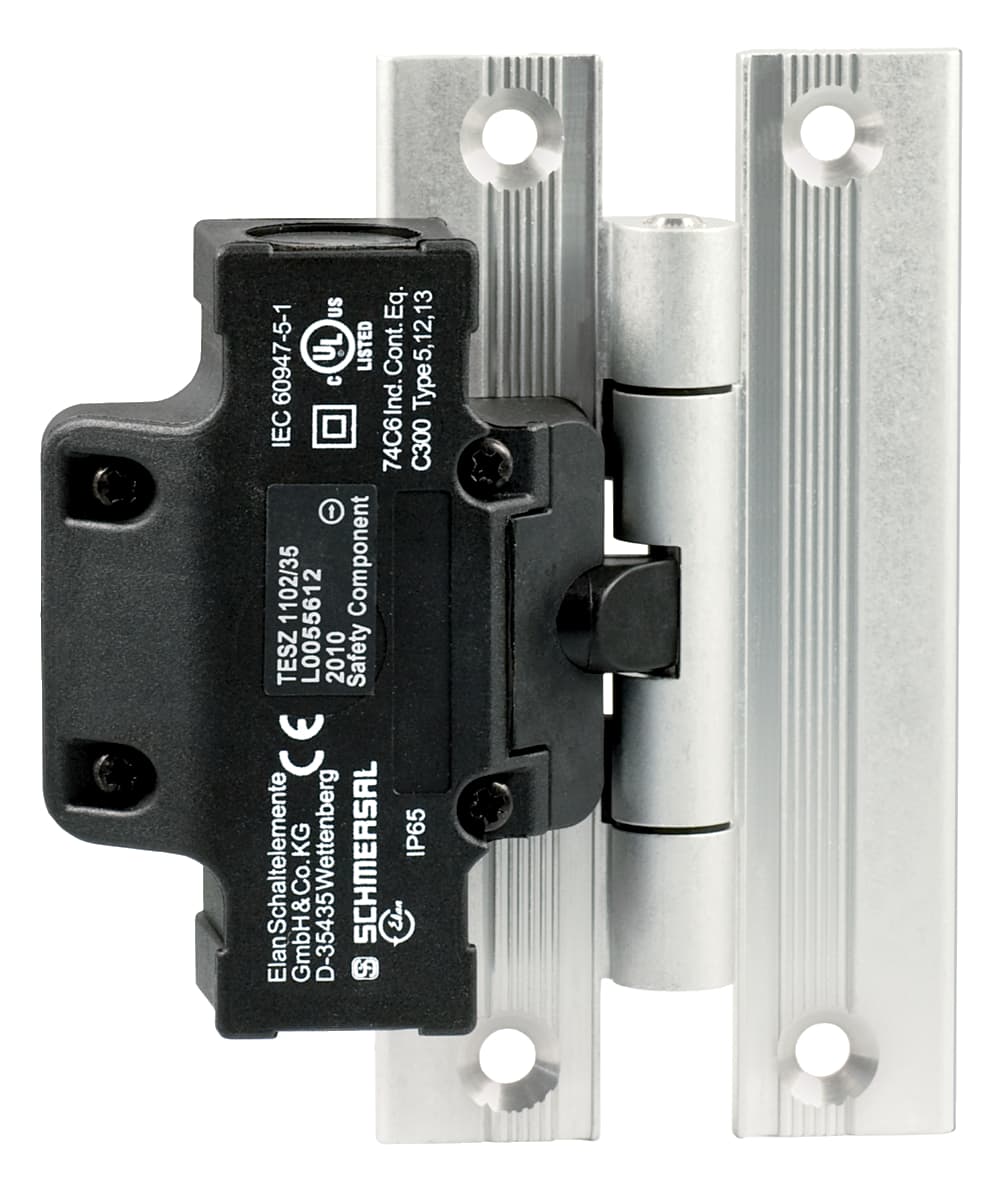

TESZ1102/S/35 Schmersal Safety Switches

Product Details

• Number of auxiliary contacts
  1
• Length of sensor
  36 mm
• Ambient temperature, maximum
  +65 °C
• Number of safety contacts
  2
• Standards
  IEC/EN 60947-5-1, BG-GS-ET-15
• Length x Width x Height
  Suitable for mounting to profile systems: 35 mm
• Thermal test current
  2.5 A
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Positive break force, minimum
  1 N
• Width of sensor
  111.5 mm
• Degree of protection
  IP65
• Switching element
  NO contact, NC contact
• Material of the hinge
  Aluminium
• Positive break angle
  14 °
• Ambient temperature, minimum
  -25 °C
• Material of the contacts, electrical
  Silver
• Cable section, maximum
  1 mm²
• Height of sensor
  92 mm
• Utilisation category DC-13
  24 VDC
• mounting hinge
  Yes
Cable section, minimum
0.5 mm²
Rated impulse withstand voltage Uimp
2.5 kV
Switching principle
Creep circuit element
Gross weight
300 g
Terminal Connector
Screw connection
Rated insulation voltage Ui
250 V
Switching frequency
120 /h
Mechanical life, minimum
1,000,000 Operations
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Utilisation category AC-15
230 VAC
