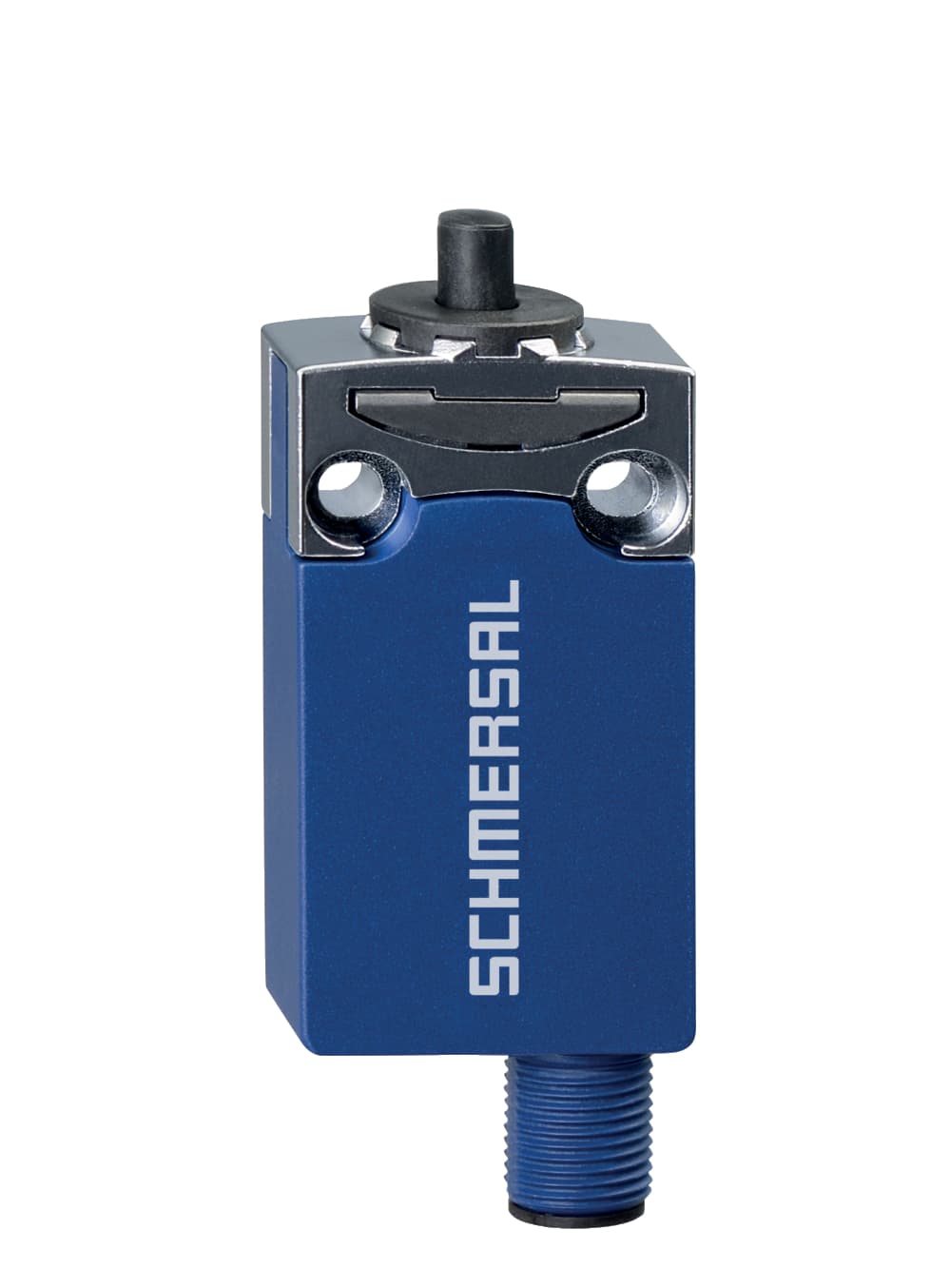

PS116-Z12-ST-S200 Schmersal Safety Switches

Product Details

• Standards
  IEC 60947-5-1
• Material of the contacts, electrical
  Silver
• Positive break force, minimum
  40 N
• Height of sensor
  64 mm
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switchover time, maximum
  5.5 ms
• Safety functions
  Yes
• Number of safety contacts
  2
• Connector position
  Bottom
• Ambient temperature, minimum
  -30 °C
• Switching element
  NO contact, NC contact
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
• Actuating speed, minimum
  10 mm/min
• Width of sensor
  31 mm
• Utilisation category AC-15
  240 VAC
• Gross weight
  70 g
• Actuating element
  plunger S200
• Wire cross-section
  0.5 mm2
• Rated impulse withstand voltage Uimp
  0.8 kV
• Switching principle
  Snap switch element
Number of auxiliary contacts
1
Mechanical life, minimum
10,000,000 Operations
Degree of protection
IP66, IP67
Utilisation category DC-13
24 VDC
Actuator type to DIN EN 50047
B
Actuating force, minimum
10 N
Length of sensor
16.6 mm
Thermal test current
2 A
Switching frequency
5,000 /h
Terminal (mechanical)
bottom
Terminal Connector
Connector M12, 6-pole
Ambient temperature, maximum
+80 °C
Actuating speed, maximum
0.5 m/s
Housing construction form
Norm construction design
Rated insulation voltage Ui
30 V
Bounce duration, maximum
3 ms
