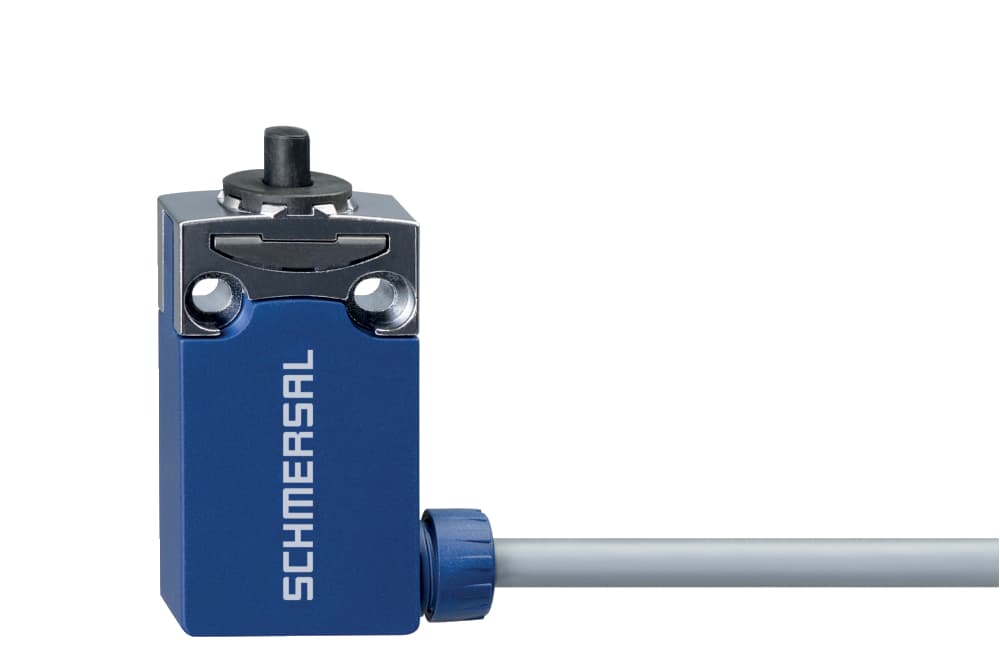

PS116-Z11-LR200-S200 Schmersal Safety Switches

Product Details

• Material of the contacts, electrical
  Silver
• Actuating speed, minimum
  10 mm/min
• Degree of protection
  IP66, IP67
• Utilisation category AC-15
  240 VAC
• Switchover time, maximum
  5.5 ms
• Actuator type to DIN EN 50047
  B
• Gross weight
  190 g
• Actuating speed, maximum
  0.5 m/s
• Ambient temperature, maximum
  +80 °C
• Number of auxiliary contacts
  1
• Mechanical life, minimum
  10,000,000 Operations
• Length of sensor
  16.6 mm
• Rated impulse withstand voltage Uimp
  4 kV
• Housing construction form
  Norm construction design
• Number of safety contacts
  1
• Terminal Connector
  Cable, 4-pole
• Ambient temperature, minimum
  -30 °C
• Switching element
  NO contact, NC contact
• Standards
  IEC 60947-5-1
• Actuating force, minimum
  10 N
Height of sensor
64 mm
Utilisation category DC-13
1.5 A
Terminal (mechanical)
right
Positive break force, minimum
40 N
Width of sensor
31 mm
Rated insulation voltage Ui
300 V
Bounce duration, maximum
3 ms
Safety functions
Yes
Cable type
LiYY
Wire cross-section
0.5 mm2
Required rated short-circuit current to EN 60947-5-1
1,000 A
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Actuating element
plunger S200
Length of cable
2 m
Thermal test current
5 A
Switching frequency
5,000 /h
Switching principle
Snap switch element
