PS116-Z11-L200-H200 Schmersal Safety Switches
Part#:PS116-Z11-L200-H200
Alt. Part#:103006644
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

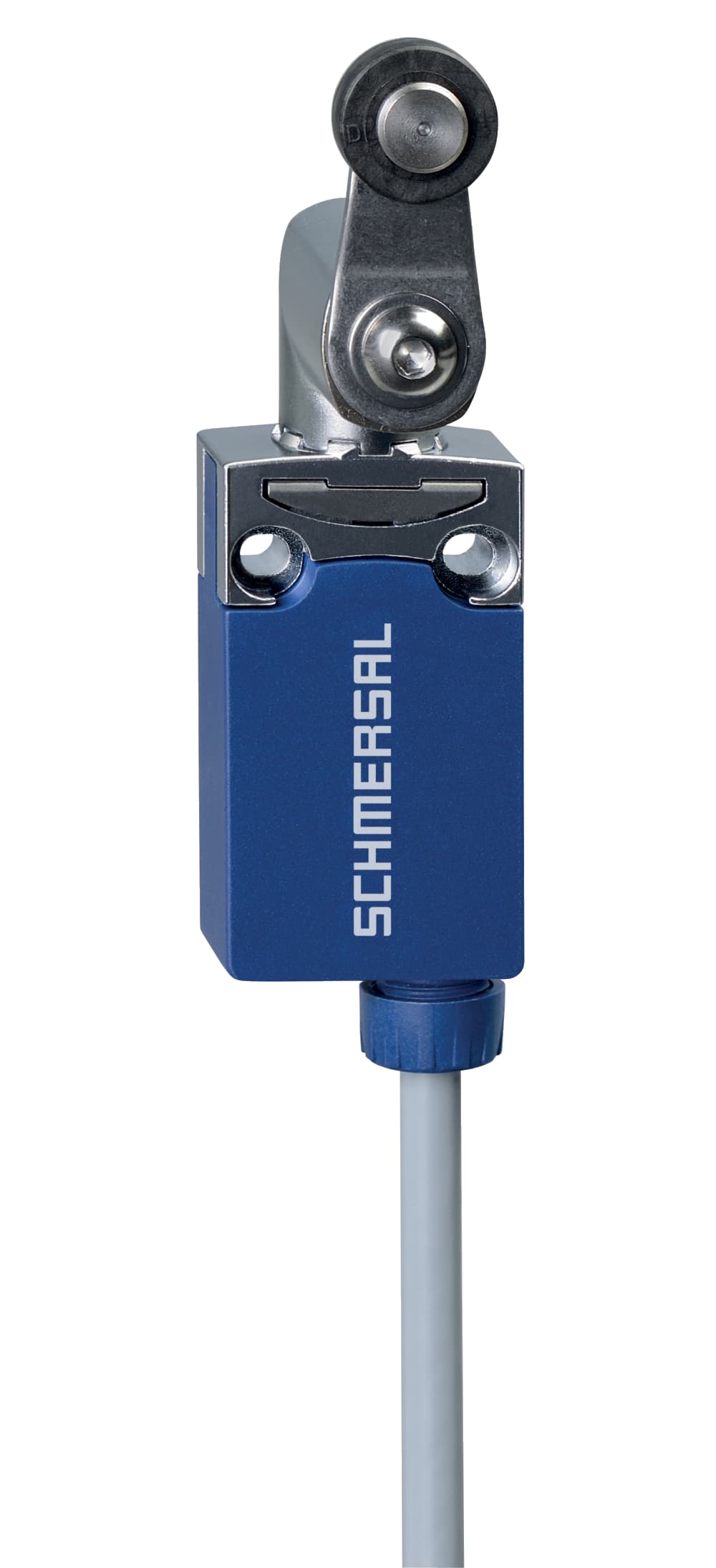

PS116-Z11-L200-H200 Schmersal - Position switch; PS116; Pre-wired cable bottom, 2; Snap action 1 Normally open contact (NO) / 1 Opener (NC); Thermoplastic enclosure; Symmetric enclosure; Lever angle adjustable in 15° steps; Protection class IP66, IP67; Actuator heads can be repositioned
Product Details
- Housing construction form Norm construction design
- Cable type LiYY
- Rated impulse withstand voltage Uimp 4 kV
- Switchover time, maximum 5.5 ms
- Number of auxiliary contacts 1
- Actuating speed, maximum 1 m/s
- Wire cross-section 0.5 mm2
- Degree of protection IP66, IP67
- Utilisation category DC-13 1.5 A
- Switching principle Snap switch element
- Number of safety contacts 1
- Actuating torque, minimum 0.2 Nm
- Length of sensor 16.6 mm
- Rated insulation voltage Ui 300 V
- Switching element NO contact, NC contact
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Material of the contacts, electrical Silver
- Actuating element Roller lever H200
- Diameter of Castor 16 mm
- Thermal test current 5 A
- Switching frequency 5,000 /h
- Actuator type to DIN EN 50047 A
- Gross weight 150 g
- Length of cable 2 m
- Width of sensor 31 mm
- Ambient temperature, maximum +80 °C
- Safety functions Yes
- Positive break torque 0.6 Nm
- Mechanical life, minimum 10,000,000 Operations
- Ambient temperature, minimum -30 °C
- Utilisation category AC-15 240 VAC
- Terminal (mechanical) bottom
- Actuating speed, minimum 92 mm/min
- Length of the lever 24 mm
- Standards IEC 60947-5-1
- Terminal Connector Cable, 4-pole
- Height of sensor 101 mm
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Bounce duration, maximum 3 ms
