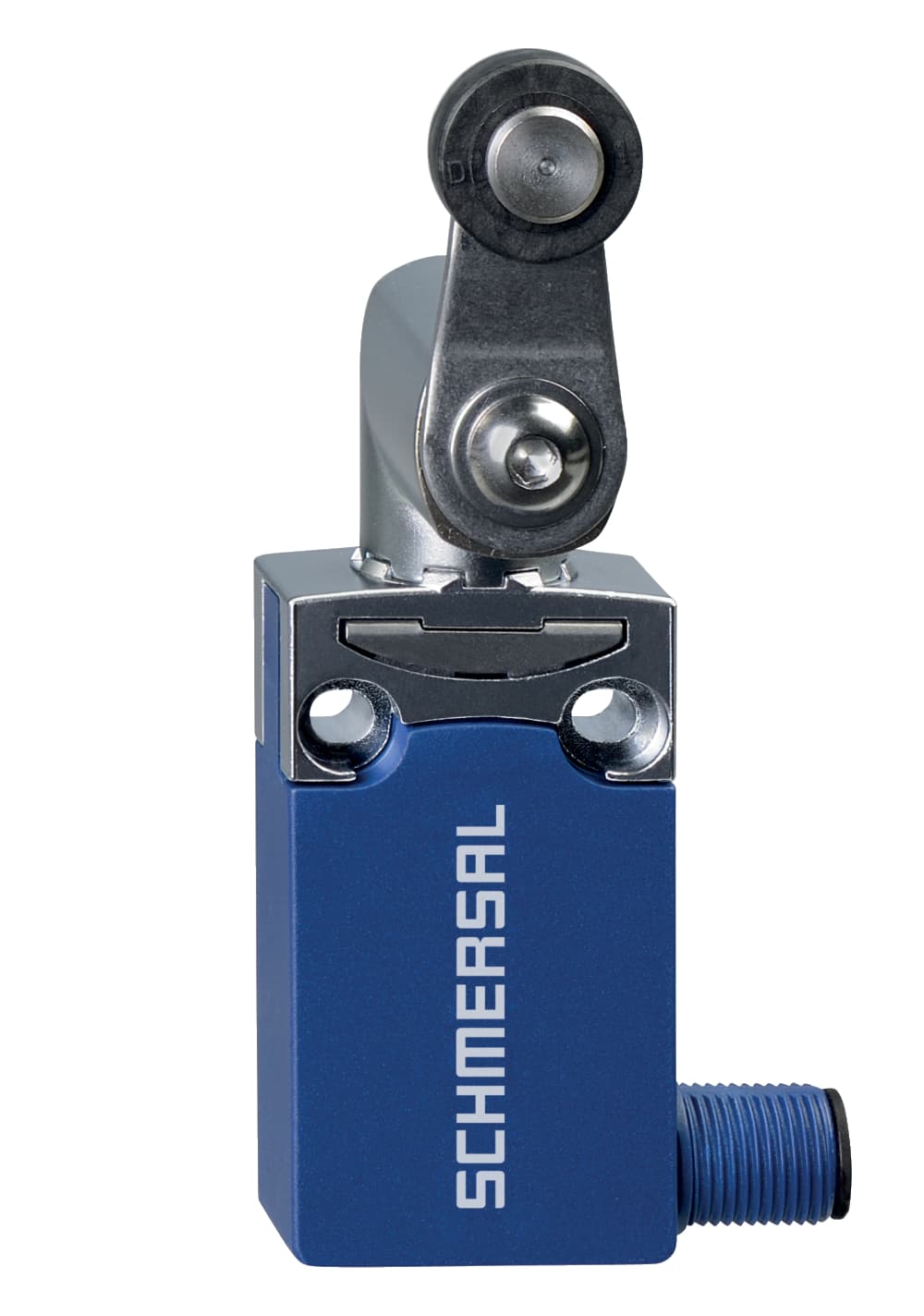

PS116-T11-STR-H200 Schmersal Safety Switches

Product Details

• Number of auxiliary contacts
  1
• Actuating speed, maximum
  1 m/s
• Ambient temperature, maximum
  +80 °C
• Switchover time, maximum
  5.5 ms
• Utilisation category DC-13
  1.5 A
• Standards
  IEC 60947-5-1
• Terminal (mechanical)
  right
• Height of sensor
  101 mm
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switching element
  NO contact, NC contact
• Housing construction form
  Norm construction design
• Terminal Connector
  Connector M12, 4-pole
• Length of sensor
  16.6 mm
• Rated insulation voltage Ui
  300 V
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
• Positive break torque
  0.6 Nm
• Ambient temperature, minimum
  -30 °C
• Material of the contacts, electrical
  Silver
• Mechanical life, minimum
  10,000,000 Operations
• Actuating speed, minimum
  492 mm/min
Thermal test current
2.5 A
Switching frequency
5,000 /h
Actuator type to DIN EN 50047
A
Actuating torque, minimum
0.2 Nm
Width of sensor
31 mm
Degree of protection
IP66, IP67
Switching principle
Creep circuit element
Gross weight
110.6 g
Actuating element
Roller lever H200
Length of the lever
24 mm
Utilisation category AC-15
240 VAC
Safety functions
Yes
Number of safety contacts
1
Diameter of Castor
16 mm
Rated impulse withstand voltage Uimp
2.5 kV
Bounce duration, maximum
3 ms
