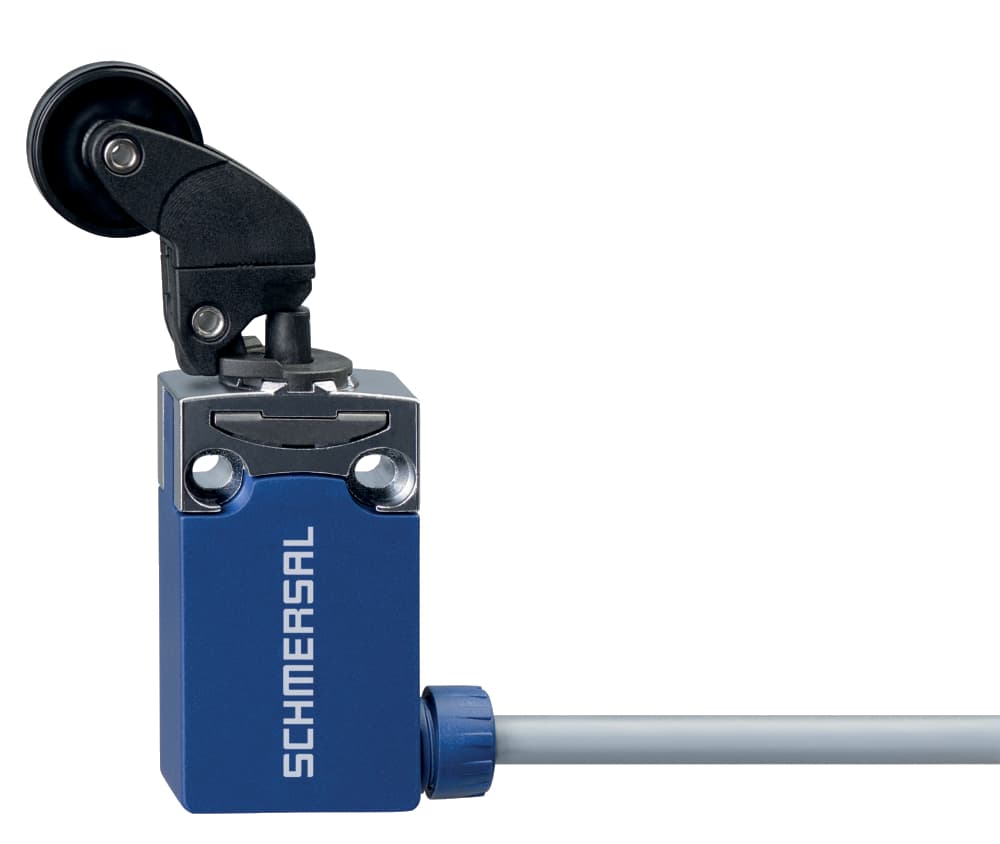

PS116-T11-LR200-K250 Schmersal Safety Switches

Product Details

• Switching element
  NO contact, NC contact
• Switchover time, maximum
  5.5 ms
• Switching frequency
  5,000 /h
• Bounce duration, maximum
  3 ms
• Switching principle
  Creep circuit element
• Utilisation category DC-13
  1.5 A
• Rated impulse withstand voltage Uimp
  4 kV
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Utilisation category AC-15
  3 A
• Thermal test current
  5 A
• Rated insulation voltage Ui
  300 V
• Length of sensor
  16.6 mm
• Ambient temperature, maximum
  +80 °C
• Width of sensor
  31 mm
• Degree of protection
  IP66, IP67
• Ambient temperature, minimum
  -30 °C
• Height of sensor
  95.5 mm
• Diameter of Castor
  22 mm
• Length of cable
  2 m
• Cable type
  LiYY
Wire cross-section
0.5 mm2
Actuating torque, minimum
0.2 Nm
Terminal Connector
Cable, 4-pole
Positive break force, minimum
40 N
Mechanical life, minimum
10,000,000 Operations
Positive break torque
0.6 Nm
Actuating force, minimum
6 N
Actuating speed, maximum
1 m/s
Actuating speed, minimum
264 mm/min
Standards
IEC 60947-5-1
Number of safety contacts
1
Safety functions
Yes
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Actuating element
Angle roller lever K250
Material of the contacts, electrical
Silver
Number of auxiliary contacts
1
Housing construction form
Norm construction design
Terminal (mechanical)
right
