PS116-T11-ST-R200 Schmersal Safety Switches
Part#:PS116-T11-ST-R200
Alt. Part#:103006654
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

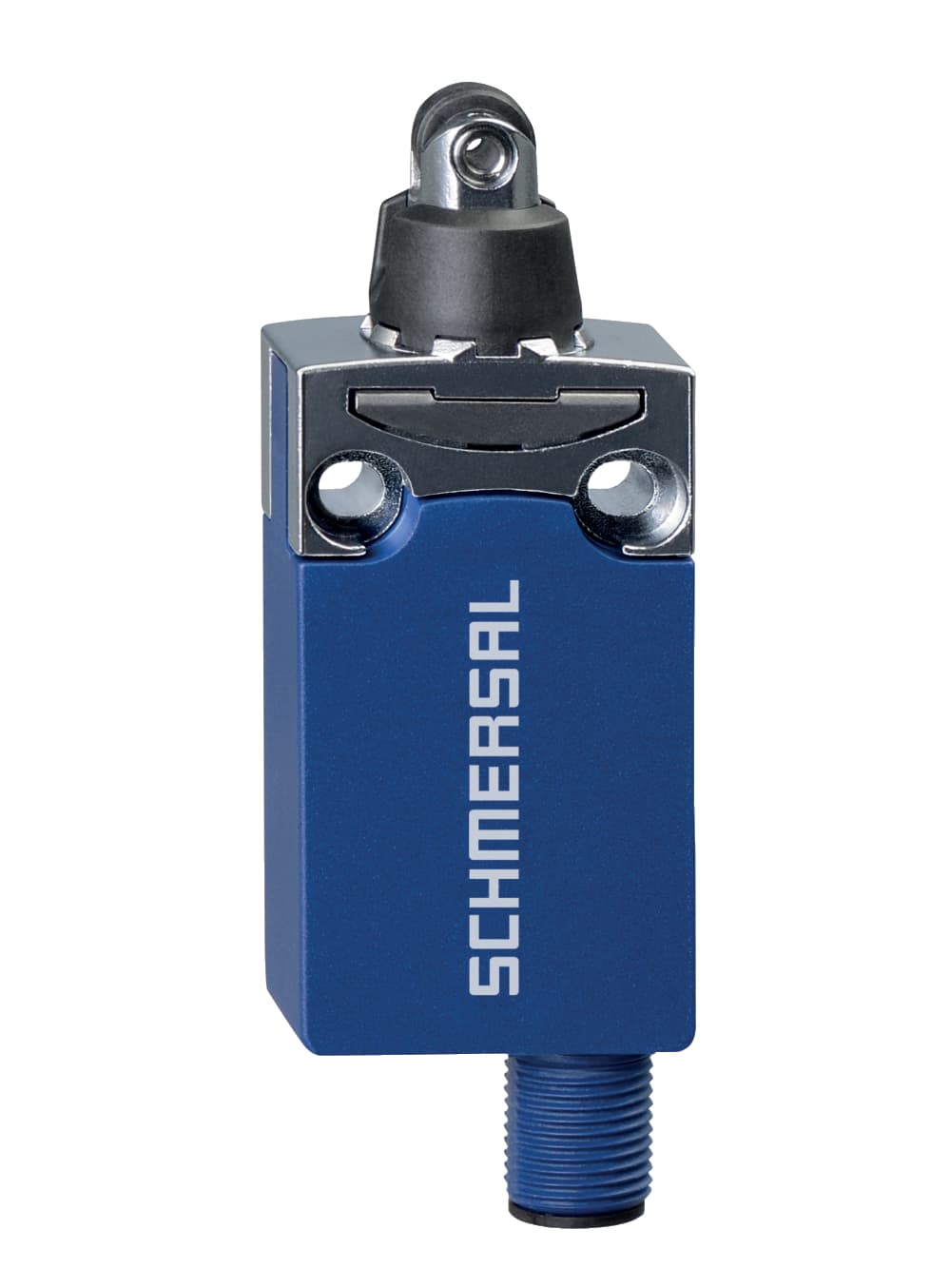

PS116-T11-ST-R200 Schmersal - Position switch; PS116; connector plug M12, bottom; Slow action 1 Normally open contact (NO) / 1 Opener (NC); Thermoplastic enclosure; Symmetric enclosure; Protection class IP66, IP67; plastic roller Ø 9,5 mm
Product Details
- Material of the contacts, electrical Silver
- Rated insulation voltage Ui 300 V
- Switchover time, maximum 5.5 ms
- Utilisation category AC-15 240 VAC
- Switching principle Creep circuit element
- Standards IEC 60947-5-1
- Actuating speed, maximum 0.5 m/s
- Degree of protection IP66, IP67
- Switching frequency 5,000 /h
- Terminal (mechanical) bottom
- Terminal Connector Connector M12, 4-pole
- Length of sensor 16.6 mm
- Safety functions Yes
- Actuating speed, minimum 60 mm/min
- Ambient temperature, maximum +80 °C
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Number of auxiliary contacts 1
- Mechanical life, minimum 10,000,000 Operations
- Width of sensor 31 mm
- Rated impulse withstand voltage Uimp 2.5 kV
- Bounce duration, maximum 3 ms
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Number of safety contacts 1
- Ambient temperature, minimum -30 °C
- Switching element NO contact, NC contact
- Housing construction form Norm construction design
- Actuating force, minimum 10 N
- Wire cross-section 0.5 mm2
- Thermal test current 2.5 A
- Gross weight 60.1 g
- Actuating element Roller plunger R200
- Height of sensor 74.1 mm
- Actuator type to DIN EN 50047 c
- Positive break force, minimum 40 N
- Diameter of Castor 9.5 mm
- Utilisation category DC-13 24 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS116-T11-ST-R200 on Applied Automation is $100.00. Order now.
