AZM150SK-02/02RIA-024-B6L Schmersal Safety Switches

AZM150SK-02/02RIA-024-B6L on Applied Automation
Schmersal

Part#:AZM150SK-02/02RIA-024-B6L

Alt. Part#:153032217

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

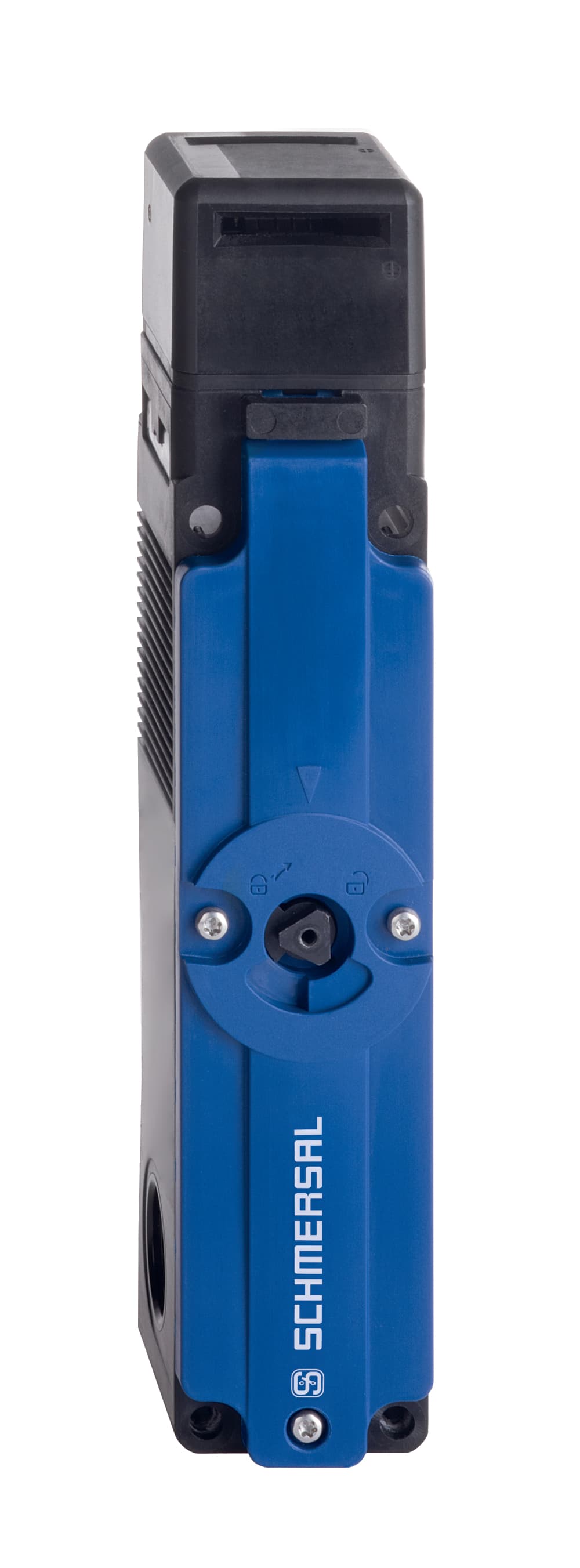

AZM150SK-02/02RIA-024-B6L Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles

Product Details

  • Manual release
    Yes
  • Latching force, approx.
    50 N
  • Cable entry
    3 x M20 x 1,5
  • Storage and transport temperature, minimum
    -40 °C
  • Utilisation category AC-15
    230 VAC
  • Standards
    EN 60947-5-1, EN ISO 14119
  • Gross weight
    626.1 g
  • Width of sensor
    40 mm
  • Rated control voltage
    24 VDC
  • Switching principle
    Creep circuit element
  • Material of the contacts, electrical
    Silver
  • Positive break force, minimum
    40 N
  • Height of sensor
    204 mm
  • positive break travel
    10 mm
  • Number of safety contacts
    4
  • Length of sensor
    48 mm
  • Rated impulse withstand voltage Uimp
    4 kV
  • Electrical power consumption, maximum
    8.5 W
  • Clamping force in accordance with ISO14119 Fzh
    1,500 N
  • Actuating speed, maximum
    0.2 m/s
  • Ambient temperature, minimum
    -25 °C
  • Utilisation category DC-13
    24 VDC
  • Mechanical life, minimum
    1,000,000 Operations
  • Cable section, minimum
    1 x 0.25 mm²
  • Required rated short-circuit current to EN 60947-5-1
    400 A
  • Active principle
    electromechanical
  • Clamping force, maximum Fmax
    1,950 N
  • Mounting
    Screws
  • Degree of protection
    IP65 to EN 60529, IP67 to EN 60529
  • Rated insulation voltage Ui
    300 V
  • Switching element
    Opener (NC)
  • Number of actuating directions
    2
  • Coding level according to ISO 14119
    High
  • Terminal Connector
    Screw terminals
  • Ambient temperature, maximum
    +55 °C
  • Thermal test current
    5 A
  • Switching frequency
    1,000 /h
  • Enclosure material
    Thermoplastic, Polyamide PA 6 GF
  • Power to lock
    Yes
  • Cable section, maximum
    1 x 2.5 mm²
  • Storage and transport temperature, maximum
    +85 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM150SK-02/02RIA-024-B6L on Applied Automation is $452.00. Order now.
