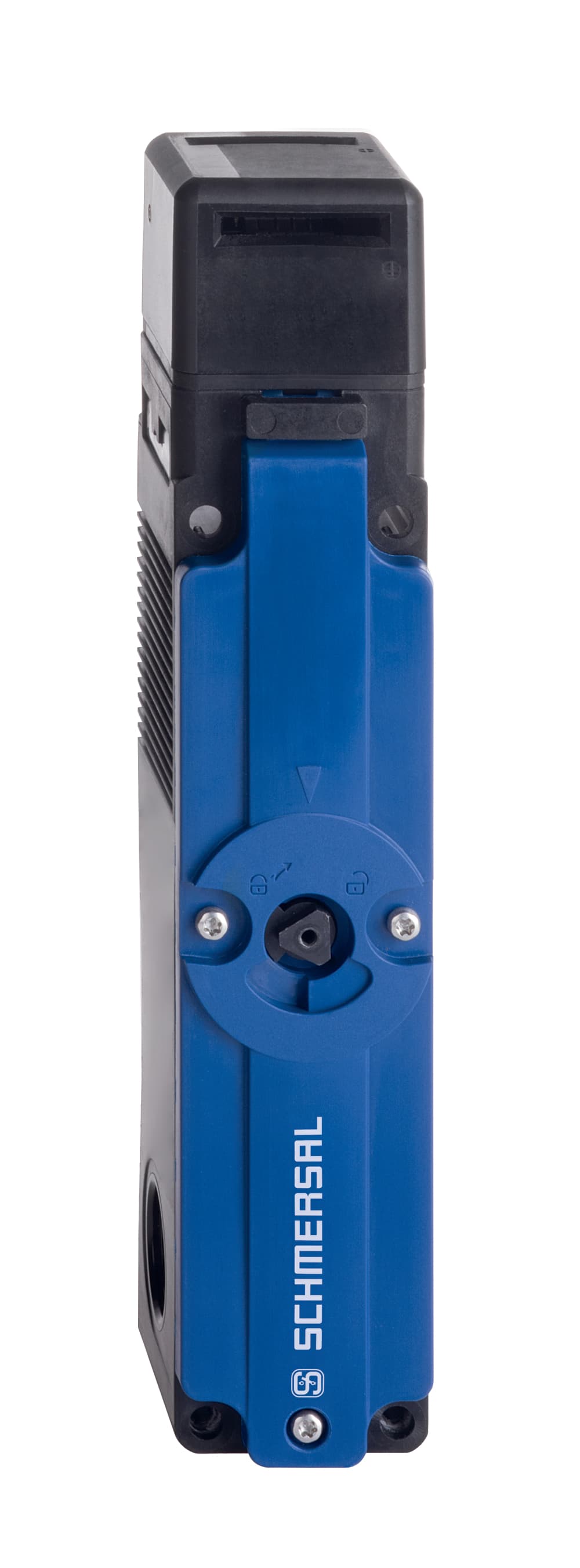

AZM150SK-02/02RI-024-B6R Schmersal Safety Switches

Product Details

• Power to unlock
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Cable entry
  3 x M20 x 1,5
• Ambient temperature, minimum
  -25 °C
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Material of the contacts, electrical
  Silver
• Number of actuating directions
  2
• positive break travel
  10 mm
• Width of sensor
  40 mm
• Storage and transport temperature, maximum
  +85 °C
• Switching frequency
  1,000 /h
• Gross weight
  620.2 g
• Clamping force in accordance with ISO14119 Fzh
  1,500 N
• Cable section, minimum
  1 x 0.25 mm²
• Ambient temperature, maximum
  +55 °C
• Utilisation category AC-15
  3 A
• Enclosure material
  Thermoplastic, Polyamide PA 6 GF
• Actuating speed, maximum
  0.2 m/s
• Cable section, maximum
  1 x 2.5 mm²
• Storage and transport temperature, minimum
  -40 °C
Switching principle
Creep circuit element
Manual release
Yes
Latching force, approx.
50 N
Mounting
Screws
Height of sensor
204 mm
Rated impulse withstand voltage Uimp
4 kV
Electrical power consumption, maximum
8.5 W
Number of safety contacts
4
Standards
EN 60947-5-1, EN ISO 14119
Length of sensor
48 mm
Thermal test current
5 A
Switching element
Opener (NC)
Active principle
electromechanical
Clamping force, maximum Fmax
1,950 N
Terminal Connector
Screw terminals
Rated control voltage
24 VDC
Coding level according to ISO 14119
High
Positive break force, minimum
40 N
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Rated insulation voltage Ui
300 V
Utilisation category DC-13
2.5 A
