W6456B4417 ROSS Controls Electronic Components
Part#:W6456B4417
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

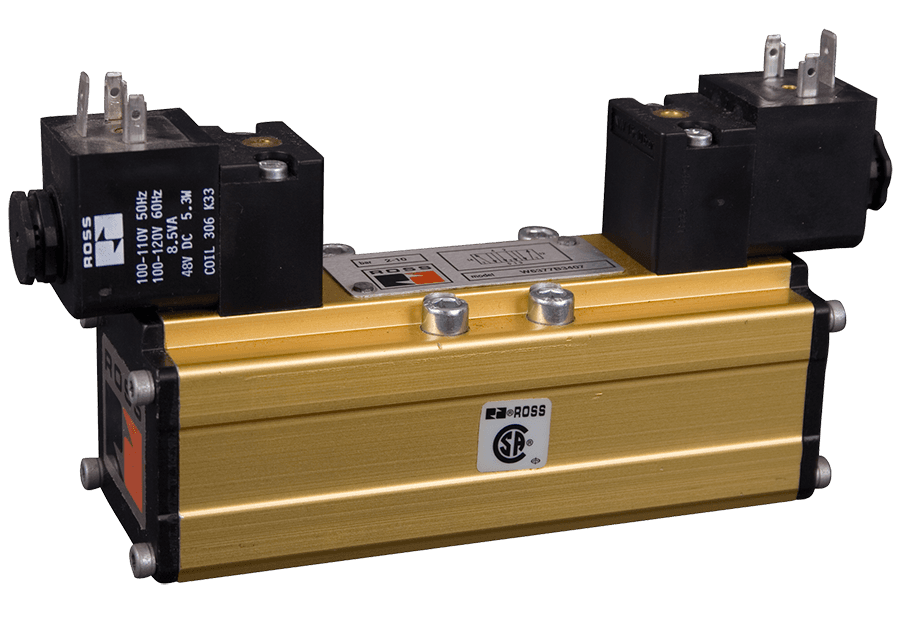

ISO 5599-1 Valve, Size 3, W64 Series, 5/2 Double, Pressure Controlled, Poppet
Product Details
- Actuation Pneumatic
- Series W64
- Poppet/Spool Material Aluminum & Stainless Steel
- Valve Standard ISO 5599-1
- Media Temperature (Celsius) 4 to 80
- Length (mm) 65
- Weight 3.3 lb (1.5 kg)
- Default Position Normally Open
- Construction Poppet
- Length 2.6 in (65 mm)
- Ambient Temperature (Celsius) 4 to 80
- Operating Pressure 30 to 150 psig (2 to 10 bar)
- Avg. Cv 4.0
- Return Spring
- Function 5/2 Double Pilot
- Width 6.4 in (163 mm)
- Ambient Temperature 40 to 175 F (4 to 80 C)
- Pilot Supply Minimum Must be ≥ inlet pressure
- Height (mm) 59
- Valve Type Directional Control
- Fluid Media Filtered Air
- Size 3
- Weight (kg) 1.5
- Pilot Type External
- Valve Body Material Bar Stock Aluminum
- Mounting Base Mount
- Seal Material Buna-N
- Height 2.3 in (59 mm)
- Application Standard Temperature
- Media Temperature 40 to 175 F (4 to 80 C)
- Operating Pressure (bar) 2 to 10
- Width (mm) 163
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6456B4417 on Applied Automation is $206.75. Order now.
