W6456B2418 ROSS Controls Electronic Components
Part#:W6456B2418
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

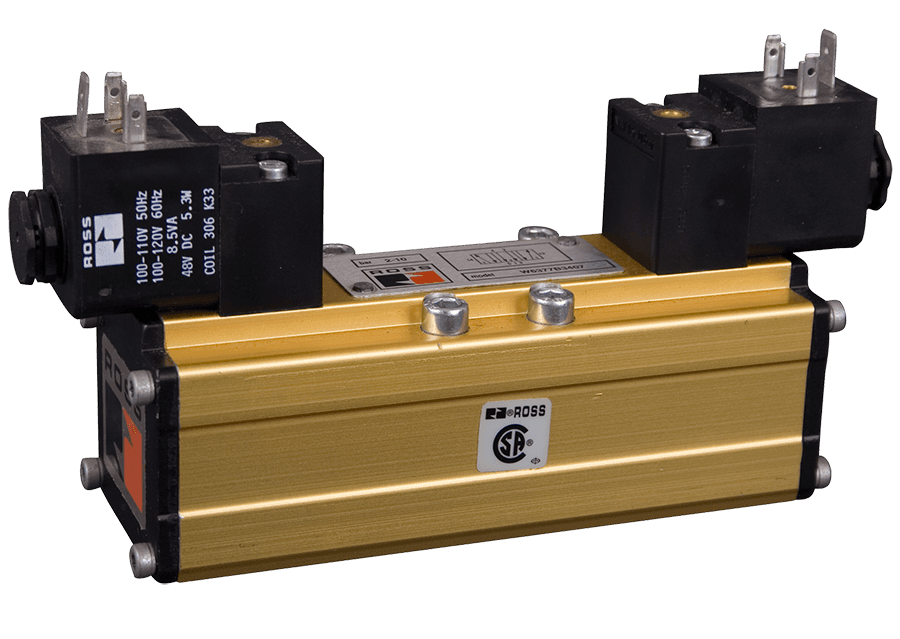

ISO 5599-1 Valve, Size 1, W64 Series, 5/2 Double, Pressure Controlled, Poppet, High Temp
Product Details
- Length 1.7 in (42 mm)
- Media Temperature (Celsius) 4 to 105
- Default Position Normally Open
- Application High Temperature
- Poppet/Spool Material Aluminum & Stainless Steel
- Return Spring
- Length (mm) 42
- Media Temperature 40 to 220 F (4 to 105 C)
- Weight 1.8 lb (0.8 kg)
- Size 1
- Ambient Temperature (Celsius) 4 to 105
- Avg. Cv 1.0
- Valve Type Directional Control
- Pilot Type External
- Height (mm) 47
- Series W64
- Operating Pressure 30 to 150 psig (2 to 10 bar)
- Seal Material Fluorocarbon
- Valve Standard ISO 5599-1
- Valve Body Material Bar Stock Aluminum
- Construction Poppet
- Width 4.4 in (110 mm)
- Actuation Pneumatic
- Pilot Supply Minimum Must be ≥ inlet pressure
- Function 5/2 Double Pilot
- Weight (kg) 0.8
- Mounting Base Mount
- Ambient Temperature 40 to 220 F (4 to 105 C)
- Width (mm) 110
- Fluid Media Filtered Air
- Height 1.8 in (47 mm)
- Operating Pressure (bar) 2 to 10
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6456B2418 on Applied Automation is $110.25. Order now.
