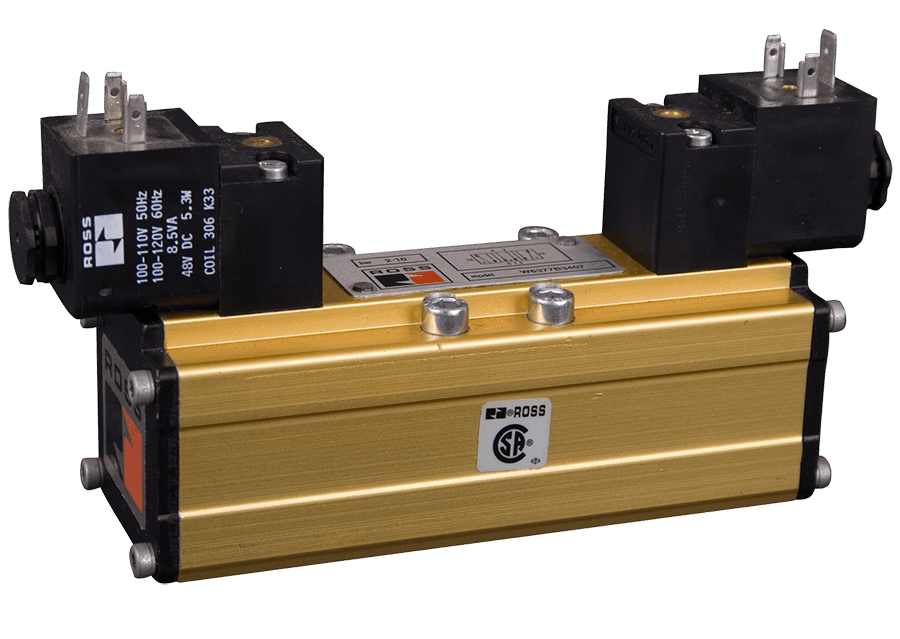

W6456B3412 ROSS Controls Electronic Components
Part#:W6456B3412
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
ISO 5599-1 Valve, Size 2, W64 Series, 5/2 Single, Pressure Controlled, Poppet, High Temp
Product Details
- Weight (kg) 0.6
- Height 2.1 in (54 mm)
- Seal Material Fluorocarbon
- Height (mm) 54
- Width (mm) 130
- Weight 1.3 lb (0.6 kg)
- Avg. Cv 2.0
- Length 2.1 in (54 mm)
- Width 5.1 in (130 mm)
- Length (mm) 54
- Poppet/Spool Material Aluminum & Stainless Steel
- Ambient Temperature 40 to 220 F (4 to 105 C)
- Operating Pressure (bar) 2 to 10
- Ambient Temperature (Celsius) 4 to 105
- Media Temperature (Celsius) 4 to 105
- Operating Pressure 30 to 150 psig (2 to 10 bar)
- Construction Poppet
- Media Temperature 40 to 220 F (4 to 105 C)
- Valve Body Material Bar Stock Aluminum
- Series W64
- Pilot Supply Minimum Must be ≥ inlet pressure
- Application High Temperature
- Size 2
- Function 5/2 Single Pilot
- Actuation Pneumatic
- Mounting Base Mount
- Default Position Normally Open
- Pilot Type External
- Valve Type Directional Control
- Valve Standard ISO 5599-1
- Return Spring
- Fluid Media Filtered Air
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W6456B3412 on Applied Automation is $161.25. Order now.
