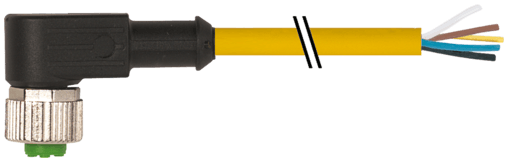

7000-12361-0150500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  275 g
• Series
  Connector Systems
• Rated surge voltage
  1.5 kV
• Locking material
  Zinc die casting, matte nickel plated
• Cable weight [g/m]
  48,4 g
• Color (jacket)
  yellow
• Product article number of manufacturer
  7000-12361-0150500
• Operating current per contact
  max. 4 A
• Operating voltage (only UL listed)
  max. 30 V AC/DC
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Shore hardness (wire isolation)
  45 ±5 D
• Outer-Ø (jacket)
  5.2 mm ±5%
• Temperature range (mobile)
  -5...+80 °C
• Operating voltage
  max. 125 V AC/DC
• No./diameter of wires
  5× 0.34 mm²
• Construction (core)
  19× 0.15 mm (multi-strand wire class 5)
• Stranding combination
  5 wires twisted around central filler
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• suitable for corrugated tube (internal Ø)
  10 mm
• Outer Ø
  5.2 mm ±5%
AWG
similar to AWG 22
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
UL 300 V AC
Material
PUR
Cable Type
1 (PVC)
Material (wire isolation)
PVC
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Bend radius (fixed)
5× outer Ø
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Temperature range
-25...+85 °C, depending on cable quality
Resistor (core)
max. 60 Ω/km (20 °C)
Current load capacity
to DIN VDE 0298-4
Bend radius (moving)
10× outer Ø
Coding
A-coded
Compression gland
M12 (SW13)
Diameter (core)
5× 0.34 mm²
Wire-Ø incl. isolation
1.25 mm ±5%
Temperature range (fixed)
-30...+80 °C
Material group
IEC 60664-1, category I
Standards
DIN EN 61076-2-101 (M12)
Single wire Ø (core)
0.15 mm
Material (jacket)
PVC
Jacket Color
yellow
Test voltage
2000 V AC
Form
12361
Pollution Degree
3
Material (wire)
Cu wire, bare
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Wire isolation
PVC (br, wh, bl, bk, gnye)
Cable identification
015
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Shore hardness (jacket)
85 ±5 A
Cable length
5 m
