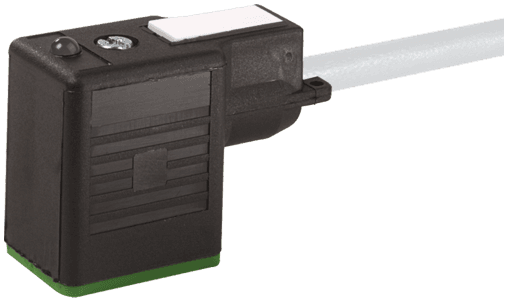

7000-11021-2160200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  144 g
• Series
  Connector Systems
• Material (jacket)
  PVC
• Nominal voltage
  300/500 V AC
• Switch off delay time
  max. 20 ms
• Cable Type
  1 (PVC)
• AWG
  similar to AWG 18
• Protection
  IP67 inserted and tightened (EN 60529)
• Pollution Degree
  3
• Rated surge voltage
  0.8 kV
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Shore hardness (jacket)
  80 ±5 A
• Temperature range (fixed)
  -30...+70 °C
• Material
  PBT
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• Product article number of manufacturer
  7000-11021-2160200
• Additional suppressor
  Diode/Z-Diode
• Temperature range
  -25...+85 °C, depending on cable quality
Operating current per contact
max. 4 A
Switch off peak
max. 55 V
chemical resistance
good resistance to oil, gasoline and chemicals
Housing
Black plastic (gray on request)
Material (wire)
Cu wire, bare
Diameter (core)
3× 0.75 mm²
Stranding combination
3 wires twisted
Color (jacket)
gray
Cable length
2 m
Locking material
Steel (galvanized)
Cable weight [g/m]
63,8 g
Shore hardness (wire isolation)
43 ±5 D
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Bend radius (moving)
10× outer Ø
Operating voltage
24 V AC ±20% / DC ±25%
Single wire Ø (core)
0.2 mm
Wire-Ø incl. isolation
1.8 mm ±5%
Outer-Ø (jacket)
5.9 mm ±5%
Temperature range (mobile)
-5...+70 °C
Form
11021
Approval (cable)
CE conform
Material (wire isolation)
PVC
Shield
no
Current load capacity
to DIN VDE 0298-4
Material (gasket)
PUR
Cable identification
216
LED display
yellow
Test voltage
3000 V AC
Bend radius (fixed)
5× outer Ø
Current consumption
max. 15 mA
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Material group
IEC 60664-1, category I
