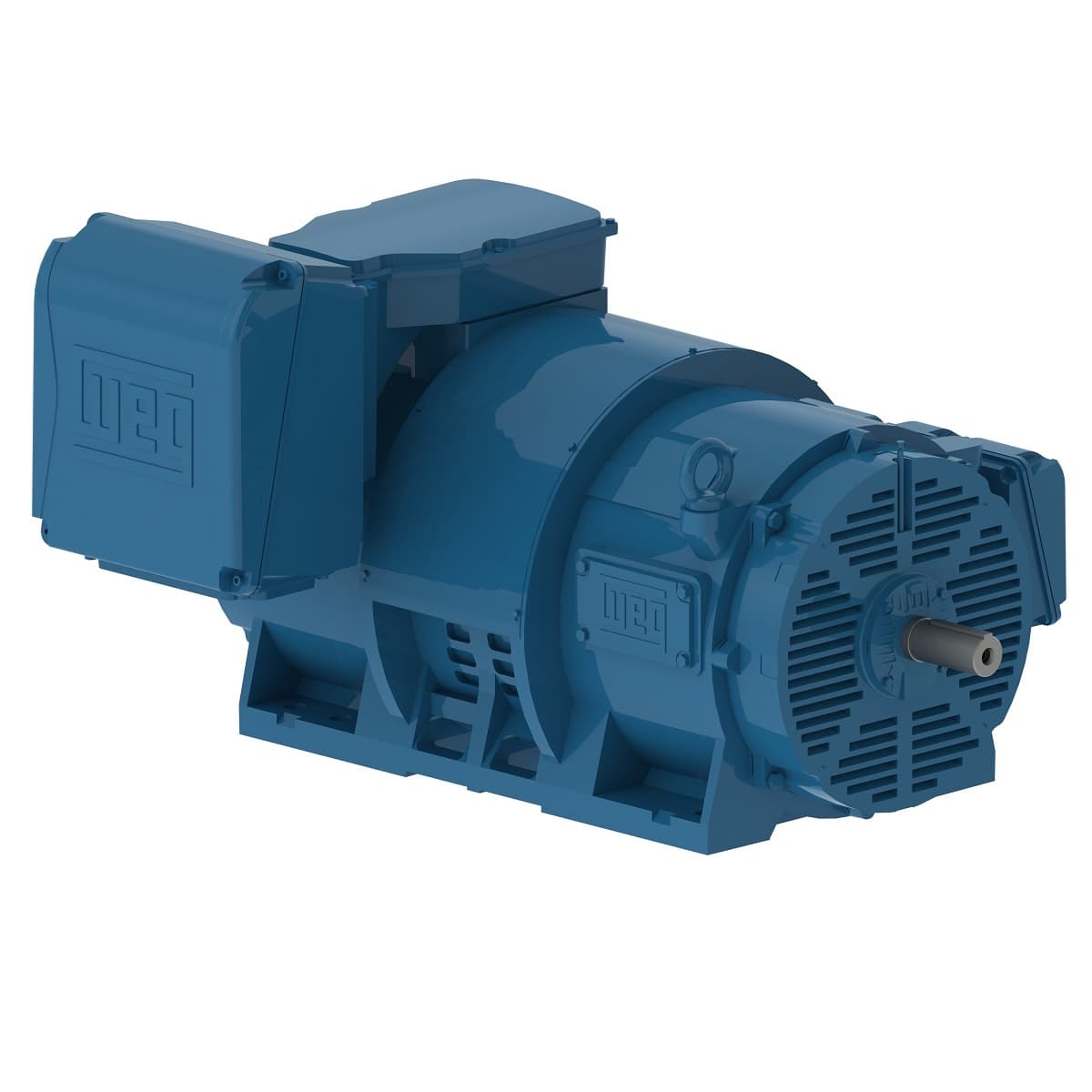

80036OT3Q5010S-W40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  460 V
• Output Rating
  800 HP
• Rated Speed
  3575 rpm
• Flange Type
  Without
• Output
  800 HP (590 kW)
• Breakdown torque
  250 %
• Ambient temperature
  -20°C to +40°C
• Mounting
  F-1
• Number of Poles
  2
• Rated torque
  1180 ft.lb
• Insulation Class
  F
• Service factor
  1.15
• Temperature rise
  80 K
• Number of poles
  2
• Voltage
  460 V
• Rated voltage
  460 V
• LRC
  7.4x(Code H)
• Frame
  5010/11
• Locked rotor time
  21s (cold) 12s (hot)
Enclosure
IC01 - ODP
Synchronous speed
3600 rpm
Standard
NEMA MG-1
Frequency
60 Hz
Moment of inertia (J)
89.0 sq.ft.lb
Altitude
1000 m.a.s.l.
Noise level²
89.0 dB(A)
L. R. Amperes
6549 A
Locked rotor torque
200 %
Starting Method
Direct On Line
Flange
Without
Rated speed
3575 rpm
Duty Cycle
Cont.(S1)
Approx. weight³
3529 lb
Rated current
885 A
No load current
220 A
Degree of Protection
IP23
Output rating
800 HP
Slip
0.69 %
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
