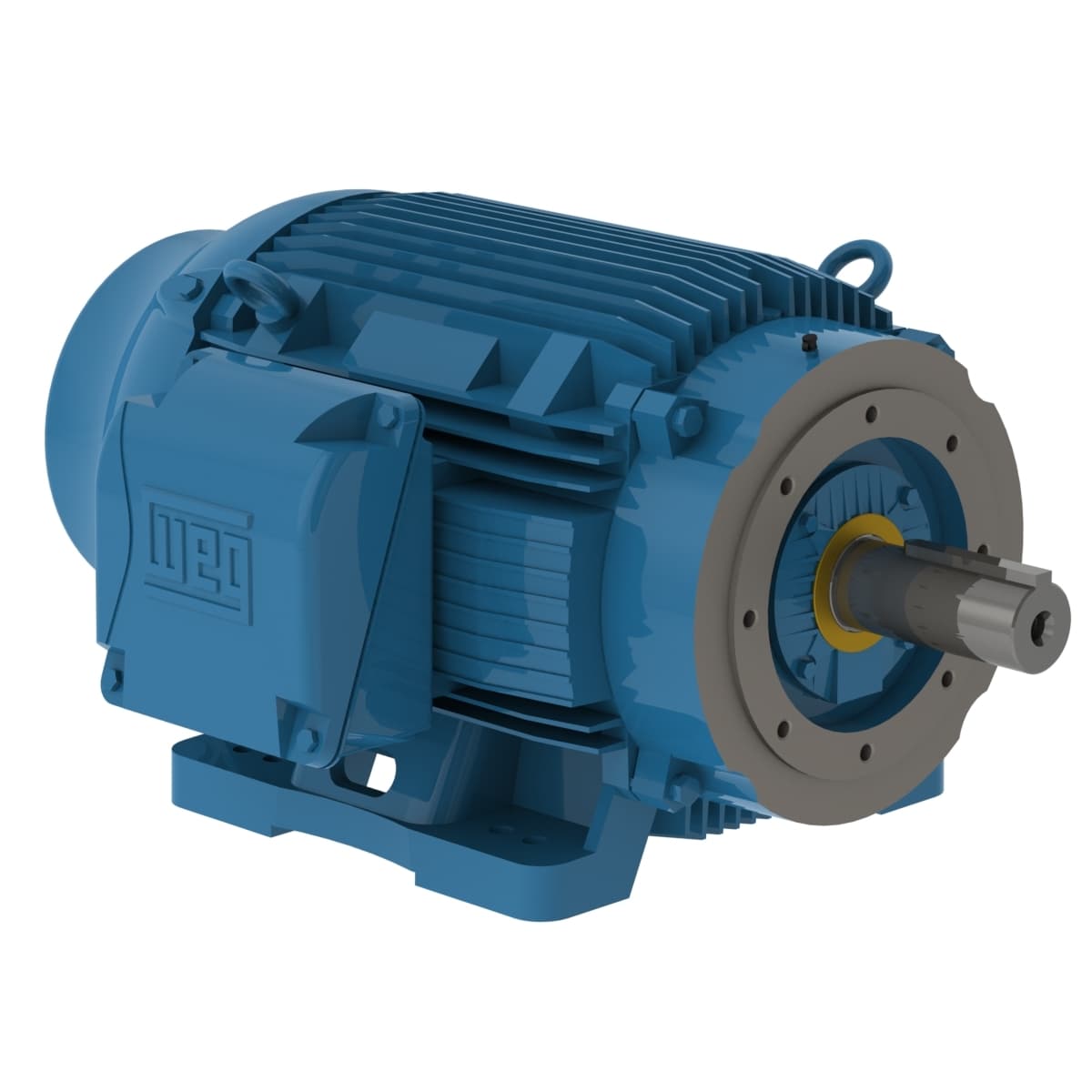

03009ST3QIE364TC-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  460 V
• Output Rating
  30 HP
• Rated Speed
  882 rpm
• Flange Type
  C
• Rated current
  38.1 A
• L. R. Amperes
  236 A
• Moment of inertia (J)
  23.5 sq.ft.lb
• Altitude
  1000 m.a.s.l.
• Standard
  NEMA MG-1
• Output
  30 HP (22 kW)
• Locked rotor torque
  160 %
• Insulation Class
  F
• Mounting
  F-1
• Duty Cycle
  Cont.(S1)
• Flange
  C
• Output rating
  30 HP
• Rated voltage
  460 V
• Degree of Protection
  IP56
• Slip
  2.00 %
Service factor
1.25
Ambient temperature
-20°C to +40°C
Voltage
460 V
LRC
6.2x(Code G)
Design
B
Approx. weight³
822 lb
Rated speed
882 rpm
Locked rotor time
45s (cold) 25s (hot)
Temperature rise
80 K
Noise level²
60.0 dB(A)
Frequency
60 Hz
No load current
16.0 A
Starting Method
Direct On Line
Number of poles
8
Frame
364/5TC
Breakdown torque
229 %
Enclosure
IC411 - TEFC
Terminal box¹
Left position
Number of Poles
8
Rated torque
179 ft.lb
Rotation¹
Both (CW and CCW)
Synchronous speed
900 rpm
