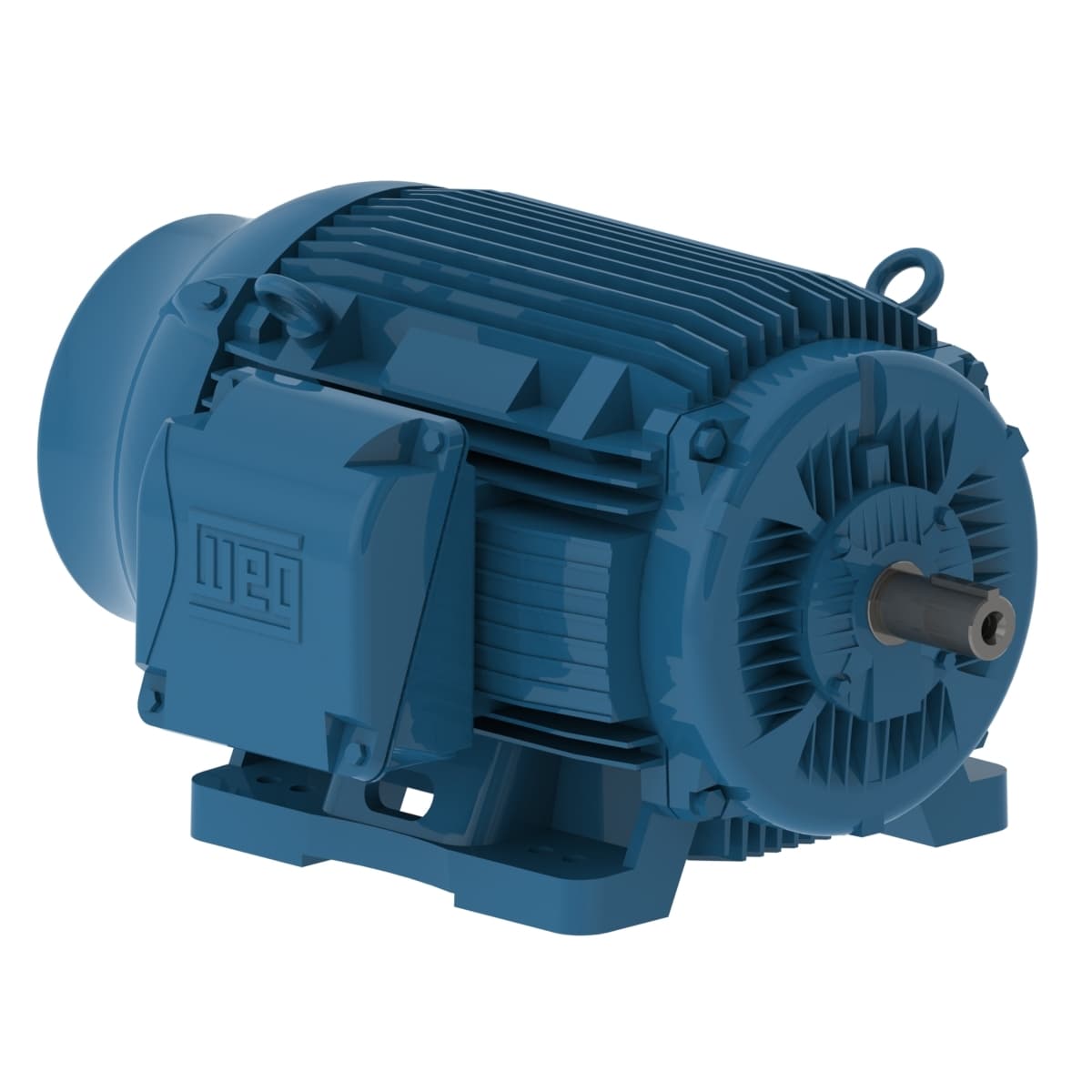

03009ET3E364T-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  230/460 V
• Output Rating
  30 HP
• Rated Speed
  882 rpm
• Flange Type
  Without
• Rated voltage
  230/460 V
• Temperature rise
  80 K
• Voltage
  230/460//380 V
• Frame
  364/5T
• Breakdown torque
  229 %
• Duty Cycle
  Cont.(S1)
• Approx. weight³
  772 lb
• Frequency
  60 Hz
• Locked rotor torque
  160 %
• Ambient temperature
  -20°C to +40°C
• Flange
  Without
• Number of Poles
  8
• Design
  B
• Rotation¹
  Both (CW and CCW)
• Output
  30 HP (22 kW)
Locked rotor time
45s (cold) 25s (hot)
Starting Method
Direct On Line
Slip
2.00 %
Service factor
1.25
Mounting
F-1
Rated current
76.2/38.1 A
Insulation Class
F
Enclosure
IC411 - TEFC
Output rating
30 HP
Moment of inertia (J)
23.5 sq.ft.lb
LRC
6.2x(Code G)
Standard
NEMA MG-1
Number of poles
8
Rated speed
882 rpm
No load current
32.0/16.0 A
Degree of Protection
IP55
L. R. Amperes
472/236 A
Rated torque
179 ft.lb
Altitude
1000 m.a.s.l.
Synchronous speed
900 rpm
Terminal box¹
Left position
Noise level²
60.0 dB(A)
