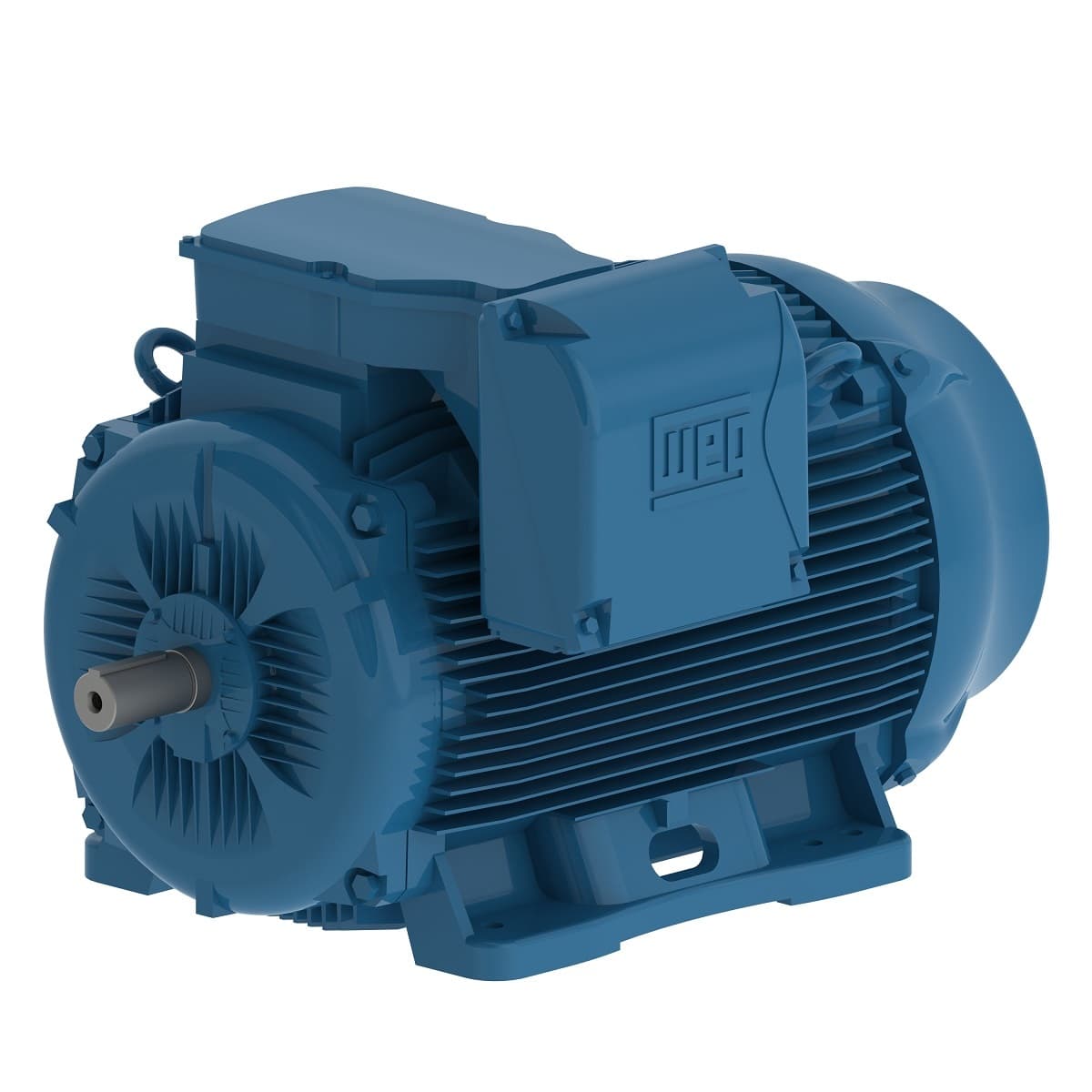

03009ET3Y250S/M-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  380 V
• Output Rating
  40 HP
• Rated Speed
  730 rpm
• Flange Type
  Without
• L. R. Amperes
  428 A
• LRC
  7.4
• Duty Cycle
  S1
• Number of poles
  8
• Flange
  Without
• Number of Poles
  8
• Breakdown torque
  250 %
• Ambient temperature
  -20°C to +40°C
• Voltage
  460//380-415 V
• Rated current
  57.9 A
• Moment of inertia (J)
  33.9 sq.ft.lb
• Degree of Protection
  IP55
• Slip
  2.67 %
• Design
  N
• Synchronous speed
  900 rpm
Locked rotor time
32s (cold) 18s (hot)
Starting Method
Direct On Line
Noise level²
56.0 dB(A)
Rated speed
730 rpm
Temperature rise
80 K
Mounting
B3L(E)
Standard
NEMA MG-1
Rated voltage
380 V
Insulation Class
F
Altitude
1000 m.a.s.l.
Terminal box¹
Right position
Output
40 HP (30 kW)
Rated torque
288 ft.lb
Approx. weight³
1145 lb
Frame
250S/M
Locked rotor torque
160 %
Rotation¹
Both (CW and CCW)
Frequency
50 Hz
No load current
23.3 A
Enclosure
IC411 - TEFC
Output rating
40 HP
